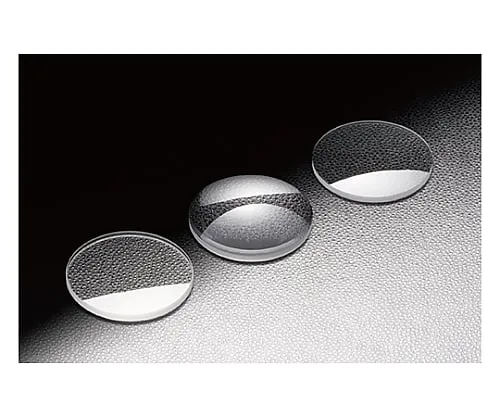

61-6895-63 Plano Convex Lens (Synthetic F***d Silica) φ5mm Focal Length 8mm SLSQ-05-08P
Analyzer, Testing Equipment

61-6895-63 Plano Convex Lens (Synthetic F***d Silica) φ5mm Focal Length 8mm SLSQ-05-08P

model: 61-6895-63
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6895-63Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6895-63
Product Brand: SIGMAKOKI CO., LTD.

Features

  • A lens for laser experiments with a simple shape and slightly reduced spherical aberration.
  • It can be ***d to focus laser light on a detector or for imaging experiments using a monochromatic light source.
  • It is a lens made of synthetic quartz that can be ***d with ultraviolet light below 350 nm and has high laser resistance.
  • It can be selected according to your specifications from a wide range of variations, subdivided by outer diameter size and focal length.
  • Chromatic aberration corrected achromatic lenses (DLB) are also available.
  • * Spherical plano-convex lenses have chromatic aberration, and the focal length dep***s on the wavelength.
  • * Plano-convex lenses allow light to enter.
  • * Be sure to allow parallel light to enter from the convex side.
  • * Doing the reverse operation will ca*** the spherical aberration to increase, which can ca*** the focus spot to increase and can ca*** blurred images.
  • * The transmittance of the uncoated product is about 90% due to the loss ca***d by the reflection of the front and back of the lens.

Spec

  • [

    common specification]
  • Material: Synthetic quartz
  • Design wavelength: 546.1nm
  • Refractive index: n e=1.460
  • Coating: No coat
  • Effective diameter: 90% of the outer diameter
  • Scratch - dig: 20-10 φ10mm ≦D, 40-20 D<φ10mm
  • [Individual specification]
  • Outer diameter φD: φ5mm
  • Focus distance f: 8mm
  • Edge thickness te: 1.6mm
  • Center thickness tc: 2.5mm
  • Back focus fb: 6.3mm
  • Curvature half diameter r: 3.68mm
  • Eccentricity: <3′
  • RoHS conform product
