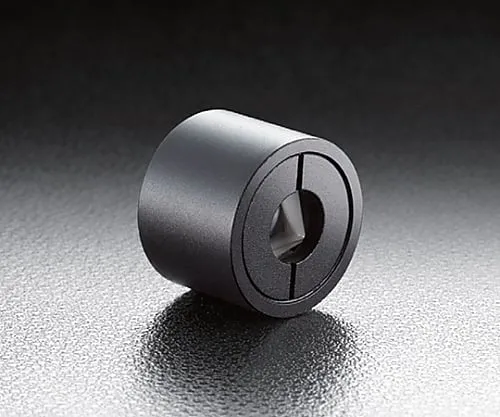

61-6886-02 Wollaston Prism 190-3500nm 15 x 14mm WPPB-06-14SN
Analyzer, Testing Equipment

61-6886-02 Wollaston Prism 190-3500nm 15 x 14mm WPPB-06-14SN

model: 61-6886-02
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6886-02Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6886-02
Product Brand: SIGMAKOKI CO., LTD.

Features

  • A prism that separates the incident beam into two orthogonal linearly polarized beams.
  • It is ***d in optical systems of phase contrast microscopes.
  • The outgoing beam emits at an inclination to the incident direction. At this time, they emit in opposite directions dep***ing on the polarization direction.
  • The surface of the Wollaston prism is coated with a single layer of antireflection film to provide high transmittance.
  • Gran Thomson Prism GTPB/GTPC with wide tolerance angle and Gran Laser Prism GLPB/GLPC for high power laser are available.
  • * When the incident angle changes, the extinction ratio of the linearly polarized light of the transmitted light also changes.
  • * The separation angle dep***s on the wavelength.
  • * Check the separation angle on the wavelength characteristic graph.
  • * Since calcite is a natural crystal, there are variations in the quality and individual differences.

Spec

  • [

    common specification]
  • Material: α-BBO, Calcite
  • Beam polarization angle: <3′
  • Wavefront accuracy: λ/4
  • Coating: MgF 2 single layer reflective prevention coat
  • Laser durability: 0.3J/cm2 (pulse width 10ns)
  • Scratch - dig: 20-10
  • Protection frame material: Aluminum (surface treatment: Black anodic oxide)
  • [Individual specification]
  • Adaptive wavelength: 190 - 3500nm
  • Extinction ratio: <5 x 10^-6
  • Separation angle (190nm): 27°
  • Separation angle (800nm): 16°
  • Separation angle (3500nm): 17°
  • φA: φ6mm
  • φD x L: 15 x 14mm
  • RoHS conform product
