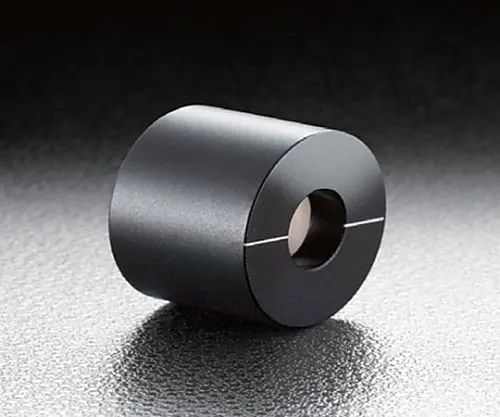

61-6885-81 Glan Tayler Prism 200-270nm 15 x 15mm GYPB-06-15SN-2/3
Analyzer, Testing Equipment

61-6885-81 Glan Tayler Prism 200-270nm 15 x 15mm GYPB-06-15SN-2/3

model: 61-6885-81
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6885-81Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6885-81
Product Brand: SIGMAKOKI CO., LTD.

Features

  • This is the shortest polarizing prism.
  • The transmission loss is low, and a high extinction ratio of 5×10^-5 or less can be obtained.
  • Calcite type for *** in the visible to infrared region and α-BBO crystal type for *** in the ultraviolet region are available.
  • The two prisms are joined with a slight gap (air gap).
  • This does not ca*** absorption due to adhesion or decrease in the laser resistance.
  • The surface of the polarizing prism is coated with a single layer of antireflection film to provide high transmittance.
  • Gran laser prism GLPB/GLPC and Wollaston prism WPPB/WPPC for high power laser are also available.
  • Please check the allowable angle if necessary.
  • * When the incident angle changes, the extinction ratio of the linearly polarized light of the transmitted light also changes.
  • * All light that does not pass through the Granthaler prism is absorbed and scattered on the side of the device.
  • * For high-precision measurement systems, it is necessary to block light scattered on the side of the device with pinholes.
  • * Since calcite is a natural crystal, there are variations in the quality and individual differences.

Spec

  • [

    common specification]
  • Material: α-BBO, Calcite
  • Beam polarization angle: <3′
  • Wavefront accuracy: λ/4
  • Coating: MgF 2 single layer reflective prevention coat
  • Laser durability: 1J/cm2 (pulse width 10ns)
  • Scratch - dig: 20-10
  • Protection frame material: Aluminum (surface treatment: Black anodic oxide)
  • [Individual specification]
  • Adaptive wavelength: 200 - 270nm
  • Extinction ratio: <5 x 10^-6
  • φA: φ6mm
  • φD x L: 15 x 15mm
  • RoHS conform product
