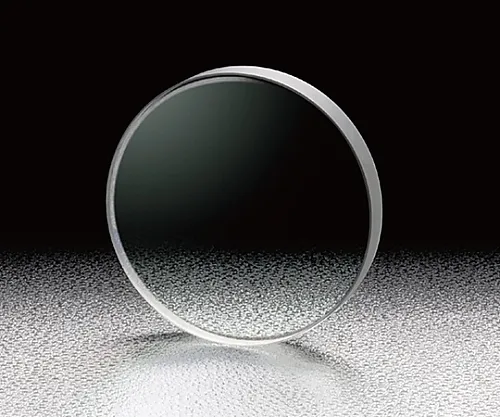

61-6885-37 Plate-Type Polarizing Beamsplitter 266nm φ20mm PBS-20C03-10-266

model: 61-6885-37
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6885-37Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6885-37
Product Brand: SIGMAKOKI CO., LTD.

Features

  • A plate-type polarization beam splitter that can be ***d for high-power lasers and large beam diameters.
  • It is ***d in optical systems such as polarization attenuators for high-power lasers and optical systems that vary the light divergence ratio.
  • By setting the incident angle to the Brewster angle, a beam splitter with a high S and P polarization separation ratio has been realized.
  • Since dielectric multilayer films are ***d for coating, light loss is small and polarization separation can be achieved efficiently.
  • Since it is a plate type, the weight does not become heavy even if the effective diameter of the beam increases.
  • The distance that light passes through the glass is reduced, so it is less affected by wavelength dispersion and chromatic aberration.
  • * Before ***, make sure that the energy density of the incident laser beam does not exceed the laser capacity.
  • * If the laser beam is narrowly narrowed by a lens or concave reflection, the energy density may exceed the laser capacity of the device and the device may be damaged.
  • * The back surface of the plate-type polarization beam splitter is not coated with anti-reflection film. (The reflection is 0% due to P polarization incident on the Brewster angle.)
  • * If the light is incident from the back side, S-polarized light may be reflected from the back side, resulting in multi-reflection stray light.
  • * Use according to the incidence angle indicated in the specifications.
  • * When the angle of incidence is different, the transmittance wavelength characteristics change, and the transmittance, reflectivity, and the separation ratio between P-polarized light and S-polarized light change.
  • * Note that the angle of incidence varies dep***ing on the material and wavelength.
  • * Characteristics of the polarization beam splitter cannot be obtained except for the adaptive wavelength.
  • * Select the element suitable for the wavelength to be ***d.
  • * Due to the effect of the refractive index and thickness of the substrate, the optical path of the transmitted light is translated by several millimeters relative to the incident light.

Spec

  • [ common specification]
  • Material: BK7 synthetic quartz
  • Substrate surface accuracy: λ/10
  • Transmission extinction ratio: Ts: Tp=1: 200
  • Parallelism: <5″
  • Coating: Surface dielectric multi-layered film, Back no coat
  • Scratch - dig: 10-5
  • Effective diameter: 90% of the outer diameter
  • [Individual specification]
  • Adaptive wavelength: 266nm
  • Outer diameter φD: φ20mm
  • Maximum transmitted beam diameter: 10mm
  • Material: Synthetic quartz
  • Incident angle: 56.3 °
  • P-polarized light transmittance: >92%
  • S polarized light reflective ratio: >95%
  • Laser durability *: 2J/cm2
  • *Incident angle of 0 degree, Laser pulse width 10ns, Repeat frequency 20Hz
  • RoHS conform product
