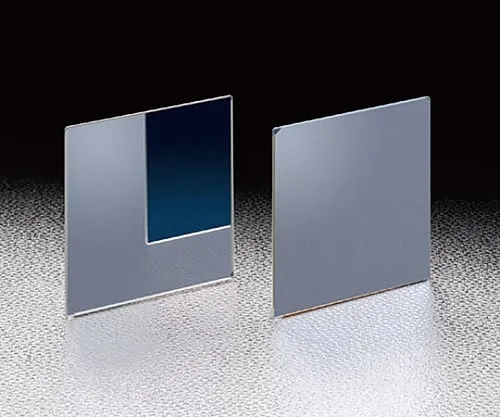

61-6882-42 Cold Mirror 25.4±0.5mm CLDM-25.4S3.3
Analyzer, Testing Equipment

61-6882-42 Cold Mirror 25.4±0.5mm CLDM-25.4S3.3

model: 61-6882-42
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6882-42Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6882-42
Product Brand: SIGMAKOKI CO., LTD.

Features

  • Cold mirrors reflect only visible light and transmit infrared light.
  • It can be ***d to separate light rays, such as sunlight, into visible and infrared (hot) rays.
  • Since it ***s a dielectric multilayer film with no absorption and glass with good infrared transmission, the glass will not break even if it is installed near a light source, even if a sudden temperature change occurs in the filter.
  • It can also be ***d to efficiently extract only infrared light.
  • It can also be ***d as a near-infrared filter by changing the angle of incidence.
  • * Cannot be ***d for high energy pulsed laser.
  • * High power laser mirror (TFMHP) is available for pulse laser.
  • * There is no anti-reflection film on the back.
  • * Allow visible light to enter from the dielectric multilayer film coat side.
  • * Light-of-light loss of about 10% occurs when the light is injected from the back side.
  • * Ghosting of the statue may occur.
  • * If a heat-absorbing object is placed on the back of the filter, the reflected light may be mixed with infrared light emitted from the absorber.
  • * The filter also transmits infrared rays coming from the back side, so please open the back side of the filter to let out the infrared rays.
  • Using the projector at an angle other than 45 degrees can ca*** infrared light to be mixed with the reflected light.

Spec

  • [
    common specification]
  • Material: BK7, B270(R) (CLDM-50S)
  • Incident angle: 45°
  • Adaptive wavelength: 400 - 2000nm
  • Scratch - dig: 80-50, 60?40 (CLDM-50S)
  • Effective diameter: Circle inscribed to 90% of outer dimensions of square
  • [Individual specification]
  • Length A: 25.4±0.5mm
  • Thickness t: 3.3±0.3mm
  • Transmittance band wavelength (45 degrees incidence): 800 - 2000nm
  • Transmittance band transmittance rate (45 degrees incidence): >75%
  • Cut-off band wavelength (45 degrees incidence): 400 - 700nm
  • Cut-off band transmittance rate (45 degrees incidence): >95%
  • Half wavelength (50%): 760±10nm
  • RoHS conform product
