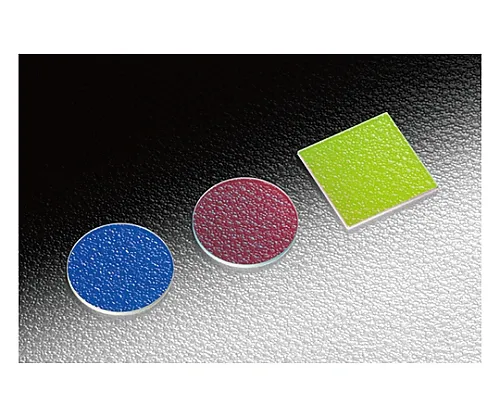

61-6882-38 Visible Range Dichroic Miirror High Transmittance Range 535-700nm DIM-50S-BLE
Product Description
Product Model: 61-6882-38Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6882-38
Product Brand: SIGMAKOKI CO., LTD.
Features
- A mirror that separates the three primary colors (RGB) of light.
- Since it ***s non-absorbing dielectric multilayers, it can *** transmitted light as well as reflected light.
- If you also *** this transmitted light, you can *** any two of the dichroic mirrors to separate R, G, and B (Example DIM-RED+ DIM-GRE: reflection ⇒ red, reflection ⇒ green, transmission ⇒ blue).
- Since the transition from transmission to reflection is rapid, it can also be ***d as a wavelength separation filter.
- If the incident angle is varied by 0~45 degrees, it can also be ***d as a simple wavelength variable filter.
- You can create white light by superimposing three RGB colors of light with a dichroic mirror.
- B270 (R) is a registered trademark of SCHOTT AG.
- * Do not *** with high-power laser or high-energy pulsed laser.
- * A dichroic mirror for the pulse laser is also available.
- * When ***d as an RGB mirror, set the angle of incidence to 45 degrees.
- Color separation will not be performed correctly if the camera is ***d at any other angle of incidence.
Spec
-
[
common specification]
- Material: B270(R) (white plate glass) or BK7
- Incident angle: 45°
- Adaptive wavelength: 400 - 700nm
- Scratch - dig: 60?40
- Effective diameter: Circle inscribed to 90% of outer dimensions of square
- [Individual specification]
- Transmittance band wavelength (45 degrees incidence): 535 - 700nm
- Transmittance band transmittance rate (45 degrees incidence): >85%
- Cut-off band wavelength (45 degrees incidence): 400 - 450nm
- Cut-off band transmittance rate (45 degrees incidence): <5%
- Half wavelength (50%): 490±10nm
- RoHS conform product
