61-6882-32 Visible Range Dichroic Filter High Transmittance Range 400-470nm DIF-50S-BLE
Analyzer, Testing Equipment

61-6882-32 Visible Range Dichroic Filter High Transmittance Range 400-470nm DIF-50S-BLE

model: 61-6882-32
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6882-32Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6882-32
Product Brand: SIGMAKOKI CO., LTD.

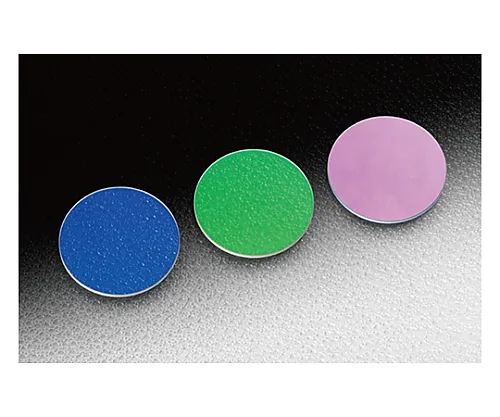

Features

  • By using dielectric multilayers, it is possible to extract light in a specific wavelength range with high efficiency.
  • We provide blue, green, red, and complementary yellow, magenta, and cyan filters that match human color vision.
  • Since the transition from transmission to reflection is rapid, it can also be ***d as a wavelength separation filter.
  • If the incident angle is varied by 0~45 degrees, it can also be ***d as a simple wavelength variable filter.
  • You can select six colors, which are the basic properties of vision, and *** them for color vision experiments.
  • B270 (R) is a registered trademark of SCHOTT AG.
  • * Do not *** with high-power laser or high-energy pulsed laser.
  • * A dichroic mirror for the pulse laser is also available.
  • * When the incident angle is set and the light reflected from the filter is also ***d, the reflectivity and transmittance characteristics change dep***ing on the incident angle.
  • * The transmitted light may appear different from the specified color when ***d at an incident angle of 45 degrees.
  • * To separate colors, *** at 0 degree incidence.

Spec

  • [

    common specification]
  • Material: B270(R) (white plate glass) or BK7
  • Incident angle: 0°
  • Adaptive wavelength: 400 - 700nm
  • Scratch - dig: 60?40
  • Effective diameter: Circle inscribed to 90% of outer dimensions of square
  • [Individual specification]
  • Transmittance band wavelength (0 degree incidence): 400 - 470nm
  • Transmittance band transmittance rate (0 degree incidence): >85%
  • Cut-off band wavelength (0 degree incidence): 530 - 700nm
  • Cut-off band transmittance rate (0 degree incidence): <1%
  • Half wavelength (50%): 495±10nm
  • RoHS conform product
