Electronic/Electrical Parts and Controll Equipments

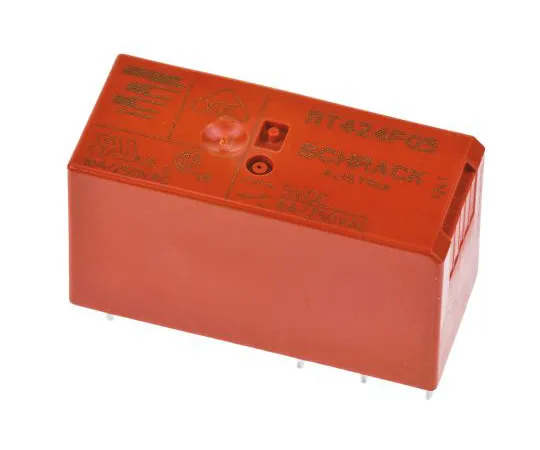

63-4947-53 DPDT PCB Mount Latching Relay 8 A, 5V dc For Use In Power Applications RT424F05
model:
63-4947-53
brand:
TE Connectivity
Product Description
Product Model: 63-4947-53Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-4947-53
Product Brand: TE Connectivity
Features
- UL, CSA, VDE. RT1 ; RT2 Series - Bistable/Latching Relays. From TE Connectivity, the RT1 and RT2 Series of relays are polarized bistable (latching) relays with either 1 or 2 coils. Featuring reinforced insulation and a degree of shock resistance, the RT1 and RT2 series relays are typically ***d in battery powered equipment or applications where "memory function" is required (e.g. mains failure.). Features and Benefits:. Reinforced insulation RTII - flux proof 5mm pinning Shock resistance (destructive) 100g
Spec
- Quantity：1piece
- Coil Voltage : 5V dc
- Contact Configuration : DPDT
- Switching Current : 8 A
- Maximum Switching Voltage AC : 400V ac
- Series : Schrack
- Length : 29mm
- Depth : 12.7mm
- Height : 15.7mm
- Dimensions : 29 x 15.7 x 12.7mm
- Terminal Type : Through Hole
- Application : Power
- Number of Poles : 2
- CODE No.:680-3883
