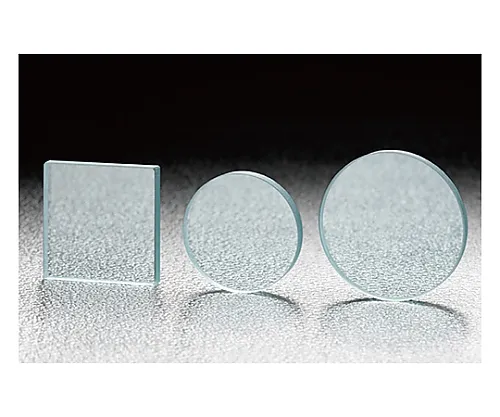

61-6882-24 Heat Absorbing Filter 573nm HAF-50S-15H
Product Description
Product Model: 61-6882-24Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6882-24
Product Brand: SIGMAKOKI CO., LTD.
Features
- Light sources such as halogen lamps and xenon lamps contain strong thermal (infrared) radiation in addition to visible light.
- Use to extract visible light from these lamps that is not affected by heat radiation.
- By blocking light in the wide wavelength range from the near infrared to the far infrared, the temperature rise ca***d by radiant heat can be suppressed.
- In an optical system such as a microscope, when the light of a lamp is collected at a single point, the temperature of the sample is prevented from being abnormally high by blocking the heat rays.
- Beca*** of the high transmittance in the visible range, the lamp does not feel dark when the filter is transmitted.
- If the filter is placed close to a light source, the filter may break due to sudden temperature changes.
- If the filter is subjected to heat strengthening treatment, the filter will not break easily even if the temperature rises.
- * Cannot be ***d for high-power laser or high-energy pulse laser in the absorption wavelength range.
- * Anti-reflection coat is not applied on both sides.
- * Reflected light from the front and back ca***s a transmittance loss of about 10%.
- * To ensure sufficient absorption of infrared rays, there is absorption at the long wavelength side of the visible range.
- * This ca***s the filter's transmission color to appear cyan (light cyan).
Spec
- Average transmittance (visible zone): >75%
- Transmission range *** wavelength: 573nm
- Transmittance limit wavelength: 701±10nm
- Long-wavelength side *** wavelength: 867nm
- Long-wavelength side *** transmittance: <0.5%
- Average transmittance (long-wavelength side *** to 2000nm): <0.1%
- RoHS conform product
