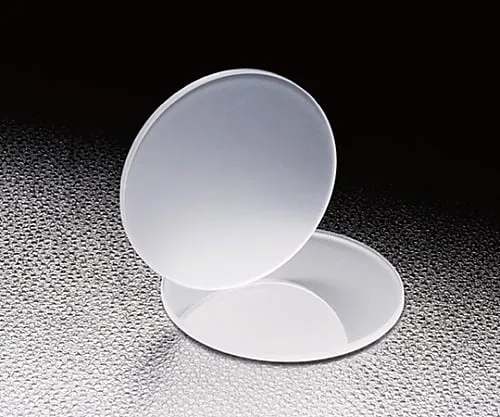

61-6881-67 Ground Glass Diff***r φ30mm Sand Blasted Surface (Sand Number Range) #240 DFB1-30C02-240
Analyzer, Testing Equipment

61-6881-67 Ground Glass Diff***r φ30mm Sand Blasted Surface (Sand Number Range) #240 DFB1-30C02-240

model: 61-6881-67
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6881-67Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6881-67
Product Brand: SIGMAKOKI CO., LTD.

Features

  • The frosted diff***r diff***s incident light over a very wide area, smoothing the luminance distribution of the original light source.
  • It can be ***d to prevent the filament of the light source from forming, to increase the illumination range of directional illumination, or as a screen.
  • The abrasive surface is rubbed with fine sand to form a rubbed glass.
  • The larger the number (#), the smaller the diameter of the sand particles.
  • There is a BK7 type for the visible to near-infrared range and a synthetic quartz type that can also *** the ultraviolet range.
  • * When using it as a screen, let it enter from the sand side.
  • * If the image is incident from the back side, 4% reflection of the back side will ca*** ghosting of the image formation.

Spec

  • [

    common specification]
  • Material: DFB1: BK7 DFSQ1: Synthetic quartz
  • Face condition surface: Sand surface sand accounted in the sand number (specific particle diameter) sand
  • Surface conditions back: Polished surface (surface accuracy about 4λ)
  • Adaptive wavelength: DFB1: 400 - 2000nm, BFSQ1: 200 - 2000nm
  • Effective diameter: 90% of the outer diameter
  • [Individual specification]
  • Material: BK7
  • Outer diameter φD: φ30mm
  • Sand surface roughness (sand number): #240
  • RoHS conform product

Related product recommendations

You may also be interested in the following products

61-0267-63 Pellicon 2 Maxi Filt Mod VVPP 0.1μm C 2.5m2 1/Pk 1ST P2VVPPC25
Analyzer, Testing Equipment
61-0252-51 Opticap XL10 Milligard LPB 0.5μm 1.5In. TC/TC 1/Pk 1ST KWL6A10TT1
Analyzer, Testing Equipment
61-0251-43 Opticap XL4 Durapore 0.1μm 3/4In. TC-9/16In. HB; 3/Pk 3 x 1ST KVVLA04FH3
Analyzer, Testing Equipment

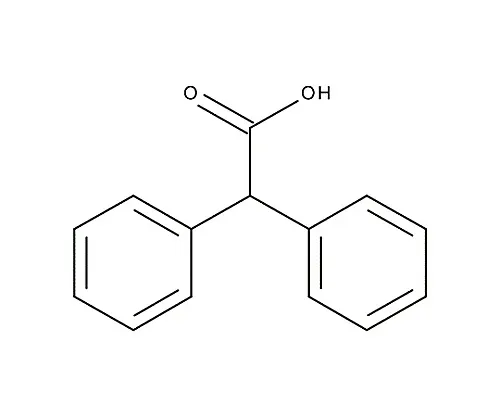

61-0326-14 [Discontinued]Diphenylacetic Acid for Synthesis 800486 100G 8.00486.0100
