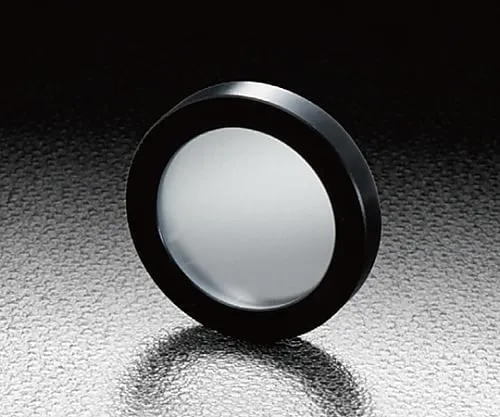

61-6881-59 Beam Shaping Diff***r φ30mm 60 x 10 ° MDFPC-30-60/10D
Analyzer, Testing Equipment

61-6881-59 Beam Shaping Diff***r φ30mm 60 x 10 ° MDFPC-30-60/10D

model: 61-6881-59
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6881-59Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6881-59
Product Brand: SIGMAKOKI CO., LTD.

Features

  • It has a higher transmittance than other diffusing plates, and it is possible to obtain diff*** light spread in one direction.
  • It can be ***d for sheet light and laser marking devices ***d for fluid observation.
  • Small lenses are randomly formed on the surface of the device. Each lens then diverges the beam into an ellipse. Therefore, light scattering or reflection in unrelated directions does not ca*** significant light loss.
  • Since the same pattern of the ellipse is emitted no matter where in the plane of the element is irradiated, the optical axis adjustment like the lens is unnecessary.
  • You can change the orientation of the ellipse by rotating the element.
  • * This function can also be ***d with laser light, but light once scattered cannot be concentrated to a single point.
  • * Do not *** solvents other than alcohol or distilled water during cleaning.
  • * The surface of the device is delicate, so do not press or rub hard objects.
  • * Use lens cleaning paper soaked with alcohol on the surface of the device.
  • * Do not *** with a high-power laser or a high-energy pulsed laser beca*** the element may deform or melt.

Spec

  • [

    common specification]
  • Material: Polycarbonate
  • Element thickness: Approx 0.25mm
  • Adaptive wavelength: 400 - 1100nm
  • Transmittance: 85 - 90% (vary dep***ing on the diffusion angle)
  • Angle tolerance: ±15% (diverging angle > 10°), ±1.5° (diverging angle ≦ 10°)
  • Refractive index: 1.586
  • [Individual specification]
  • Frame outer diameter φD: φ30mm
  • Effective diameter φA: φ22mm
  • Ellipse diffusion angle long diameter x short diameter: 60 x 10°
  • RoHS conform product
