61-6879-10 Absorptive Neutral Density Filter (YAGLaser) φ25mm Transmittance 5% MANY-25-5
Analyzer, Testing Equipment

61-6879-10 Absorptive Neutral Density Filter (YAGLaser) φ25mm Transmittance 5% MANY-25-5

model: 61-6879-10
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6879-10Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6879-10
Product Brand: SIGMAKOKI CO., LTD.

Features

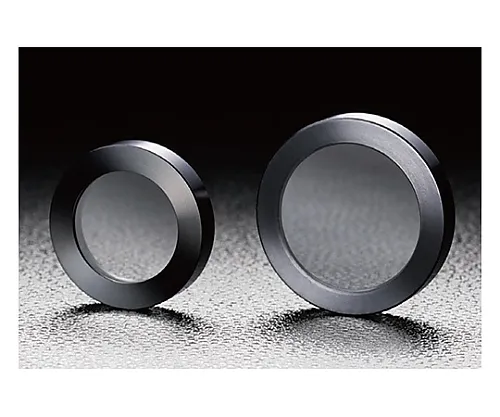

  • A filter with a frame for dimming the light of a YAG laser (1064 nm).
  • Since it is an absorption type, stray light due to reflection is small, and the wavelength characteristic of transmitted light does not change significantly due to dimming.
  • Since the transmittance is finely divided, the light can be dimmed to various light levels.
  • Furthermore, by combining multiple filters, subtle light adjustment is possible.
  • A frame is attached to the filter so it can be fixed to the filter holder (FH).
  • There is no filter holder for frame diameter φ30 mm.
  • Use the lens holder (LHF-30 S).
  • If an absorbent fixed ND filter is placed near a light source, the filter may break due to sudden temperature changes.
  • If the filter is subjected to heat strengthening treatment, the filter will not break easily even if the temperature rises.
  • If the filter is thermally tempered, the dimension will be large and may exceed the tolerance range.
  • * Cannot be ***d for high power laser.
  • * There is a risk of damage if ***d.
  • * Use a reflective ND filter (FND) for high power laser.
  • * The transmittance wavelength characteristics vary dep***ing on the manufacturing lot.
  • * In particular, the wavelength characteristics outside the applicable wavelength may differ greatly dep***ing on the manufacturing lot.
  • * Use a reflective filter (FND) if the wavelength range is wider than the specified wavelength range.
  • * The ND filter does not have an anti-reflection coat, so the reflection is about 4%.

Spec

  • [

    common specification]
  • Material: Optical glass (including optical absorption material)
  • Adaptive wavelength: 1064nm
  • [Individual specification]
  • Frame outer diameter φD: φ25mm
  • Effective diameter φA: φ17mm
  • Transmittance (1064nm): 5%
  • RoHS conform product
