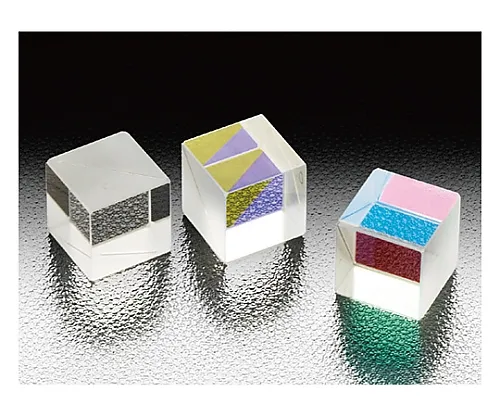

61-6876-66 Non-Polarizing Cube Half Mirror 266nm A = B = C: 10mm NPCH-10-2660
Analyzer, Testing Equipment

61-6876-66 Non-Polarizing Cube Half Mirror 266nm A = B = C: 10mm NPCH-10-2660

model: 61-6876-66
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6876-66Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6876-66
Product Brand: SIGMAKOKI CO., LTD.

Features

  • This half mirror provides an accurate 1:1 divergence ratio between reflection and transmission even for laser and linearly polarized light sources.
  • Dielectric multilayer film and transparent adhesive are ***d for the reflecting surface, and anti-reflection coat is ***d for the incoming and outgoing surfaces, so light loss is small and incident light can be ***d efficiently.
  • The reflection to transmission branching ratio (1:1) does not change when the polarization orientation of linearly polarized light changes.
  • We have a lineup that supports lasers of various wavelengths.
  • Since it is a cube type, the optical axis of the emitted light will not be translated if the beam is incident vertically.
  • Also, even if a beam of the same size as the effective diameter is injected, the transmitted or reflected light will not be lost or reduced.
  • * Enter light from the prism side indicated by ○.
  • * Reflectivity, branching ratio, and polarization characteristics may change when the other prism is ***d.
  • * The phase difference of the incident light is not stored in transmitted light or reflected light.
  • * Use a wave plate to compensate for the phase difference.
  • * Wavelength dispersion occurs in transmitted and reflected light due to the refractive index of the material and the thickness of the glass.
  • * In addition, chromatic aberration and spherical aberration may occur when a converging or diverging beam is injected.

Spec

  • [

    common specification]
  • Material: BK7 synthetic quartz
  • Base material surface accuracy: λ/4
  • Transmitted beam polarization angle: <5′
  • Coating: Slope dielectric multi-layered film, Side 4 surfaces reflective prevention film
  • Incident angle: 0°
  • Branching ratio (reflection: Transmission): 1: 1
  • Laser durability: 0.3J/cm2 (pulse width 10ns, Repeat frequency 20Hz)
  • Scratch - dig: 20-10
  • Effective range: Circle inscribed to 85% of outer dimensions of square (A=B=C ≦ 7mm: Circle inscribed to 80% of outer dimensions of square)
  • [Individual specification]
  • Adaptive wavelength: 266nm
  • A=B=C: 10mm
  • Material: Synthetic quartz
  • Transmittance: 50±10%
  • RoHS conform product
