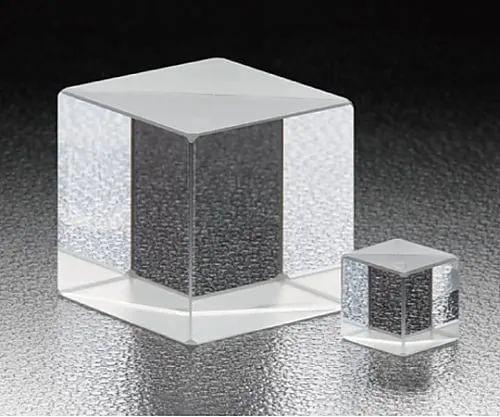

61-6876-18 Chromium Cube Half Mirror 400-700nm A = B = C: 10mm CSCH-10-550
Analyzer, Testing Equipment

61-6876-18 Chromium Cube Half Mirror 400-700nm A = B = C: 10mm CSCH-10-550

model: 61-6876-18
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6876-18Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6876-18
Product Brand: SIGMAKOKI CO., LTD.

Features

  • A cube-type half mirror that can be ***d in a wide wavelength range from visible to infrared.
  • It can be ***d for simple experiments and spectroscopic measurements.
  • Since a metal film is ***d, the dep***ence of transmittance on wavelength is small over a wide wavelength range, and the transmittance and reflectivity hardly change when the wavelength changes.
  • We have a lineup for visible and infrared light (semiconductor laser).
  • Since it is a cube type, the optical axis of the emitted light will not be translated if the beam is incident vertically.
  • Also, even if a beam of the same size as the effective diameter is injected, the transmitted or reflected light will not be lost or reduced.
  • * The chromium film absorbs about 40% of the light, and only about 30% of the incident light can be ***d for transmitted light and reflected light.
  • * Enter light from the prism side indicated by ○.
  • * When light is inserted from the opposite prism, the reflectance and reflectance wavelength characteristics will differ dep***ing on the absorption film.
  • * When linearly polarized light such as laser light is ***d, the reflectivity and transmittance vary dep***ing on the polarization direction.
  • * When adjusting the branching ratio to 1:1, tilt the polarization azimuth to 45 degrees or *** circularly polarized light.
  • * The phase difference of the incident light is not stored in transmitted light or reflected light.
  • * Use a wave plate to compensate for the phase difference.

Spec

  • [

    common specification]
  • Material: BK7
  • Base material surface accuracy: λ/4
  • Transmitted beam polarization angle: <5′
  • Coating: Slope chromium films, Side 4 surfaces reflective prevention film
  • Incident angle: 0°
  • Transmittance: Average 28 ±5% (average value of P polarized light and S polarized light)
  • Branching ratio (reflection: Transmission): 1: 1
  • Laser durability: 0.3J/cm2 (pulse width 10ns, Repeat frequency 20Hz)
  • Scratch - dig: 40-20
  • Effective range: Circle inscribed to 85% of outer dimensions of square
  • [Individual specification]
  • Adaptive wavelength: 400 - 700nm
  • A=B=C: 10mm
  • RoHS conform product
