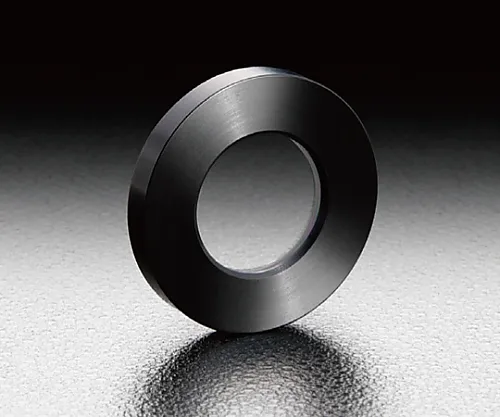

61-6875-61 Thin Plate Beamsplitter 0.3±0.03mm MPSMH-30C0.3-1-550
Analyzer, Testing Equipment

61-6875-61 Thin Plate Beamsplitter 0.3±0.03mm MPSMH-30C0.3-1-550

model: 61-6875-61
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6875-61Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6875-61
Product Brand: SIGMAKOKI CO., LTD.

Features

  • This is a beam splitter that reduces the thickness of the substrate to the extreme.
  • Reflected light can be extracted without affecting the beam shift or wavelength dispersion of transmitted light when inserted into the optical path.
  • Two types of glass substrates, 300 μm and 90 μm in thickness, are available.
  • The substrate is coated with a dielectric multilayer film that branches transmission and reflection 1:1.
  • The surface is coated with a dielectric multilayer film and the back is coated with an anti-reflection film, resulting in little loss of light.
  • The thin glass substrate is firmly fixed to the holding glass, which is less affected by thermal expansion.
  • Unlike pellicles, synthetic quartz is thinly processed, so it has excellent durability and vibration resistance.
  • * Since the glass substrate of the plate thin beam splitter is very thin, it will be damaged only by light force.
  • * Handle with care.
  • * If dust arrives on the surface of the device, it cannot be wiped with lens paper, etc.
  • * Use an air blower to blow away the garbage.
  • * When linearly polarized light such as laser light is ***d, the reflectivity and transmittance vary dep***ing on the polarization direction.
  • * When strictly adjusting the branching ratio to 1:1, tilt the polarization azimuth to 45 degrees or *** circularly polarized light.
  • * Transmittance wavelength characteristics change when ***d at an incidence angle other than 45 degrees.
  • * The reflecting surface may be distorted when the holding glass is pressed tightly.
  • * When fixing, be sure to support only the outer frame.
  • * The surface accuracy of the reflecting surface may deteriorate when the camera is ***d in an environment where temperature changes rapidly.
  • * The phase difference of the incident light is not stored in transmitted light or reflected light.
  • * Use a wave plate to compensate for the phase difference.

Spec

  • [ common specification]
  • Material: Synthetic quartz
  • Coating: Surface dielectric multi-layered film, Back (45° taper hole side) reflective prevention film
  • Incident angle: 45°
  • Transmittance: Average 50 ±5% (average value of P polarized light and S polarized light)
  • Branching ratio (reflection: Transmission): 1: 1
  • Scratch - dig: 40-20
  • Effective diameter: φ10mm
  • Frame material: Holding glass synthetic quartz, External frame aluminum surface treatment: Matte black anodic oxide
  • [Individual specification]
  • Adaptive wavelength: 400 - 700nm
  • Element thickness: 0.3±0.03mm
  • After coat surface accuracy: Reflection: λ transmission: λ
  • RoHS conform product
