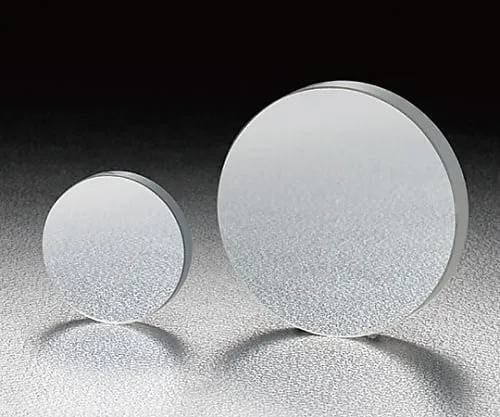

61-6875-36 High Parallelism Aluminum Mirror φ10mm Thickness 5mm OPBA-10C05-10
Analyzer, Testing Equipment

61-6875-36 High Parallelism Aluminum Mirror φ10mm Thickness 5mm OPBA-10C05-10

model: 61-6875-36
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6875-36Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6875-36
Product Brand: SIGMAKOKI CO., LTD.

Features

  • A mirror in which aluminum is deposited on a plane substrate that has been polished with high precision.
  • It has a high degree of parallelism, so you can *** it to angle a jig.
  • Aluminum with a protective coat is coated on a parallel plane substrate.
  • Can be ***d as a mirror for visible or near-infrared light.
  • * When multiple mirrors are ***d to propagate light, large amounts of light are lost due to absorption of the aluminum film.
  • * Use a dielectric multilayer mirror (TFM, etc.).

Spec

  • [

    common specification]
  • Material: BK7, Synthetic quartz
  • Coating: Al+MgF 2
  • Parallelism: <0′02″
  • Incident angle: 0°
  • Laser durability: 0.25J/cm2 (pulse width 10ns, Repeat frequency 20Hz)
  • Scratch - dig: 40?20
  • Effective range: 90% of the outer diameter
  • [Individual specification]
  • Outer diameter φD: φ10mm
  • Thickness t: 5mm
  • Material: BK7
  • Substrate surface accuracy (both sides): λ/10
  • RoHS conform product
