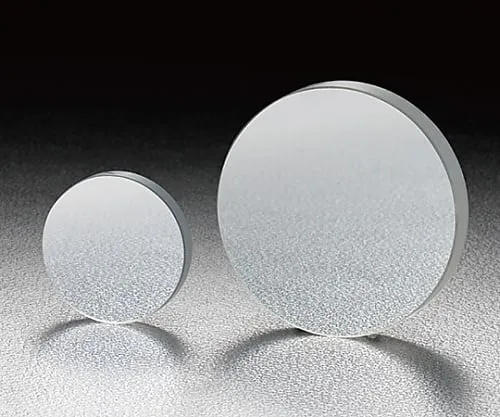

61-6873-39 UV Enhanced Aluminum Flat Mirror φ12.7mm 170-400nm TFAE-12.7C05-10
Analyzer, Testing Equipment

61-6873-39 UV Enhanced Aluminum Flat Mirror φ12.7mm 170-400nm TFAE-12.7C05-10

model: 61-6873-39
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6873-39Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6873-39
Product Brand: SIGMAKOKI CO., LTD.

Features

  • A mirror in which aluminum is deposited on a plane substrate that has been polished with high precision.
  • High reflectivity can be obtained at all incident angles.
  • A protective coating of dielectric multilayers designed to increase the reflectance of visible and ultraviolet light.
  • The reflectivity is slightly reduced, but the reflectivity is stable even in visible and infrared light.
  • Pyrex (R) is a registered trademark of Corning Corporation.
  • * When multiple mirrors are ***d to propagate light, large amounts of light are lost due to absorption of the aluminum film.
  • * Use a dielectric multilayer mirror (TFM, etc.).
  • * The reflectance of the specification is expressed as the average value of the reflectance of P-polarized light and S-polarized light.
  • * Reflectivity may change dep***ing on the polarization state of the incident beam.

Spec

  • [

    common specification]
  • Material: BK7
  • Coating: Al + dielectric multi-layered film
  • Parallelism: <3′
  • Incident angle: 45°
  • Laser durability: 0.25J/cm2 (pulse width 10ns, Repeat frequency 20Hz)
  • Scratch - dig: 40?20
  • Effective range: 90% of the outer diameter
  • [Individual specification]
  • Adaptive wavelength: 170 - 400nm
  • Reflective ratio: > Average 85%
  • Outer diameter φD: φ12.7mm
  • Thickness t: 5mm
  • Material: BK7
  • Substrate surface accuracy: λ/10
  • Back: Sand surface
  • RoHS conform product
