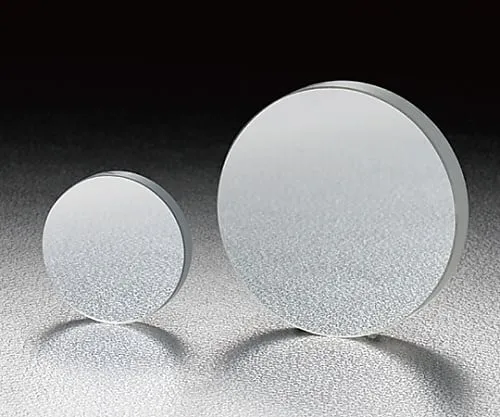

61-6872-37 Aluminum Mirror (Round shape) φ10mm Substrate Surface Flatness λ/4 TFA-10C03-4
Analyzer, Testing Equipment

61-6872-37 Aluminum Mirror (Round shape) φ10mm Substrate Surface Flatness λ/4 TFA-10C03-4

model: 61-6872-37
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6872-37Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6872-37
Product Brand: SIGMAKOKI CO., LTD.

Features

  • A mirror in which aluminum is deposited on a plane substrate that has been polished with high precision.
  • High reflectivity can be obtained at all incident angles.
  • There are two types: one is coated with aluminum film only (TFAN/TFAQN) and the other is coated with aluminum film for protection to prevent scratching (TFA/TFAQ).
  • Can be ***d as a mirror for visible or near-infrared light.
  • Low expansion, high rigidity and high surface accuracy mirrors (TFAQ/TFAQN) using synthetic quartz substrates are also available.
  • Pyrex (R) is a registered trademark of Corning Corporation.
  • * Aluminum mirrors without a protective film (TFAN/TFAQN) are prone to scratches and oxidation of the film occurs.
  • * Never rub the mirror surface with paper or cloth.
  • * When storing for a long time, *** a deoxidizer to prevent oxidation of aluminum.
  • * When multiple mirrors are ***d to propagate light, large amounts of light are lost due to absorption of the aluminum film.
  • * Use a dielectric multilayer mirror (TFM, etc.).
  • * The reflectance of the specification is expressed as the average value of the reflectance of P-polarized light and S-polarized light.
  • * Reflectivity may change dep***ing on the polarization state of the incident beam.

Spec

  • [

    common specification]
  • Material: BK7, Synthetic quartz, Hard glass (Pyrex(R) etc.)
  • Coating: Al + MgF 2 (surface accuracy λ/20 is Al + SiO)
  • Parallelism: <3′
  • Incident angle: 45°
  • Laser durability: 0.25J/cm2 (pulse width 10ns, Repeat frequency 20Hz)
  • Scratch - dig: 40?20
  • Effective range: 90% of the outer diameter
  • [Individual specification]
  • Coating: Al+MgF2
  • Outer diameter φD: φ10mm
  • Thickness t: 3mm
  • Material: BK7
  • Substrate surface accuracy: λ/4
  • Back: Sand surface
  • RoHS conform product
