Spec

• Quantity: 1 sets

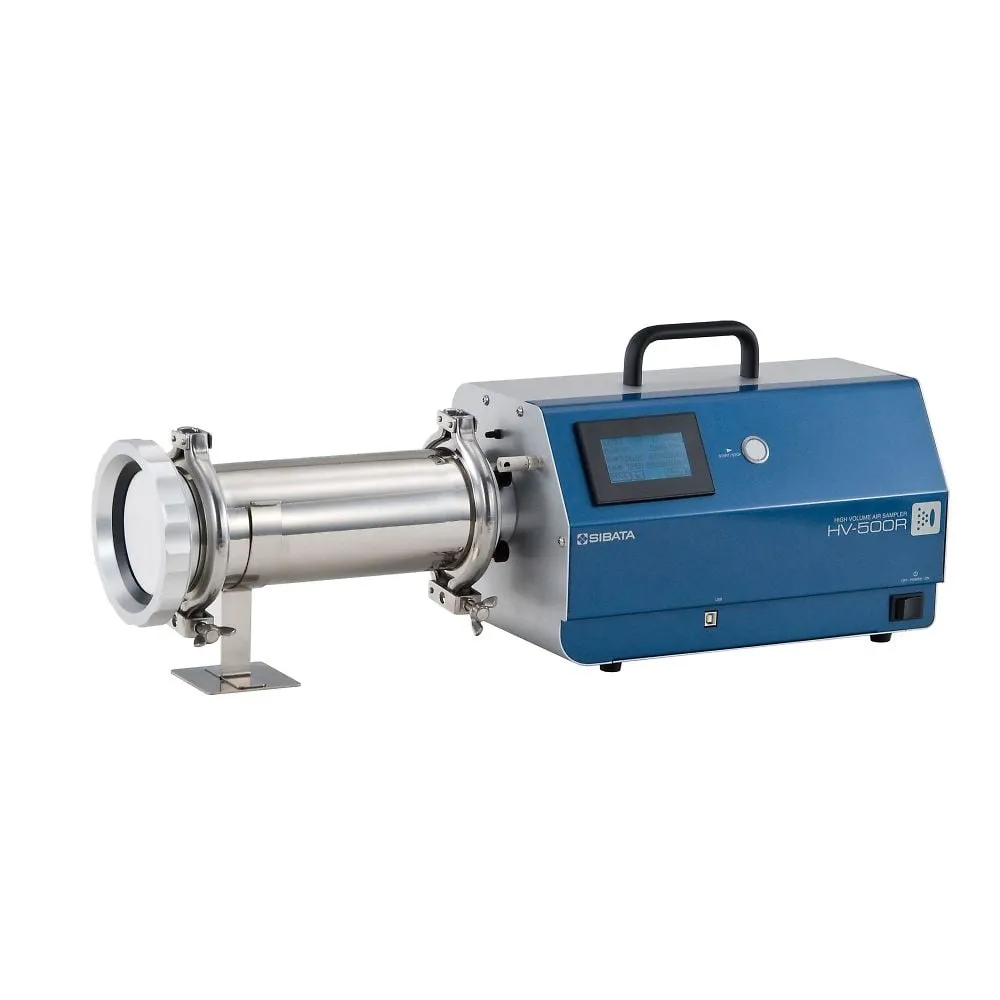

• Type: HV-500RD type
• Extension: HV-500RD type
• Type: HV-500RD type
• Mass: 12kg
• Height (mm): 271
• Width (mm): 668
• Depth (mm): 200
• Power supply: 100VAC, 10A
• Accuracy: +/- 5%
• Ambient temperature range: 0 - 40℃
• Display: Touch panel type liquid crystal
• Maximum suction flow: 400L/min (when loading Φ110mmQR-100 1 sheet, 2 urethane forms)
• Flow rate detection: Differential pressure detection method
• Suction pump: Brushless blower
• Specification: Instantaneous flow rate, Integrating flow is 25℃, Automatically corrected to a value of 1atm. (20℃ + 1atm, Or you can also correct in the real flow rate. ) Temperature protection device is operated when the suction air temperature in the equipment becomes high and the blower motor is stopped. When using in 400L/m or more, Use HV-500RD1 type. The traceability of HV-500RD and HV-500RD1 is the one as HV-500R.
• Accessories: Φ110mm QR-100 10 sheets, Urethane foam 10 pieces
• Traceability: Available
