61-4426-29 Outdoor Dust Monitor FLD-1 080040-63
Product Description
Product Model: 61-4426-29Product Brand: SIBATA SCIENTIF […]
Contact Us
Product Details
Product Model: 61-4426-29
Product Brand: SIBATA SCIENTIFIC TECHNOLOGY LTD.
Features
- Conventional portable dust meters are convenient to carry, but they are not suitable for continuous measurement beca*** they are made with the assumption that each measurement time is short. For outdoor ***, a separate cabinet and sampling line must be provided to avoid wind and rain.

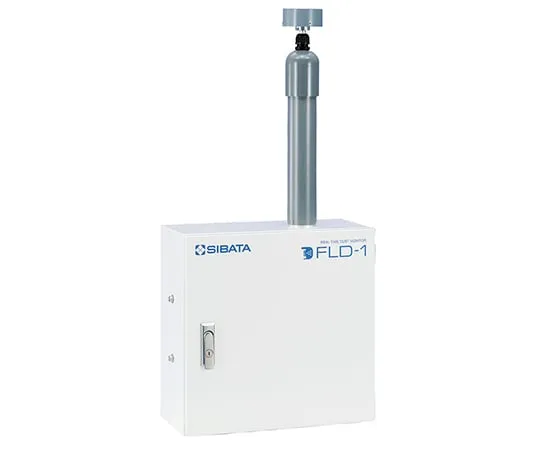

- Outdoor Dust Monitor Model FLD-1 is a dust monitor made for continuous measurement outdoors with a light-scattering dust meter in a cabinet.
- By using this equipment, it is possible to easily measure the dust concentration outdoors without any modification. In addition, with its abundant output functions, it can be ***d to monitor dust concentrations using multiple units at site boundaries and construction sites.
Spec
- Quantity: 1 unit
- Type: FLD-1 type
- Extension: FLD-1 type
- Type: FLD-1 type
- Mass: 14kg
- Height (mm): 860
- Width (mm): 400
- Depth (mm): 200
- Measurement range: 0.001 - 100mg/m3
- Power supply: AC100V, 0.5A
- Accuracy: +/- 10%
- Ambient temperature range: 0 - 40℃
- Suction flow rate: 1,7L/min
- Light source: Laser diode
- Measurement sensitivity: 1CPM=0.001mg/m3
- Measurement principle: Light scattering type
- Specification: Display section, dust concentration, Suction flow rate, Pressure, Heater temperature (wind direction is optional, Wind speed, Temperature, Humidity), Mass density conversion coefficient◎0.10 - 99.99, Suction pump, diaphragm type, Pump suction flow 1.7L/min, Flow temperature conversion 20℃ 1atm, Flowmeter, mass flow sensor, Filter paper diameter φ47mm, Display, liquid crystal display with backlight (20 digits x 4 stages), Sampling line, heater for dehumidification (10W), Output, analog output: DC 0-1V, 4-20mA Output items: Dust concentration (instantaneous value)☆alarm output: Open collector output (rated DC24V, 0.04A) Output conditions: 1. Dust concentration (flat equalizing value), 2. Dust concentration (instantaneous value), 3. Various errors, choose one of 1 -3, USB, RS-485: By s***ing the specified command, Getting measurement data, alarm information, Available to start, stop measurement, Measurement value, logging function log timing: Cycle: 1 - 99 minutes (maximum 9999), Items: Dust concentration, Suction flow rate, Atmospheric pressure, Heater temperature, hereunder option: Temperature, Humidity, Wind speed, Wind speed, Alarm logging function◎log timing: When generating alarm, Items: Power disconnection abnormality, BG measurement errors, Sensitivity compensation errors, Pump flow errors, Laser errors, Dust unit communication errors, Weather measuring device communication errors, Dehumidification heater errors, Button battery capacity alerts, Battery exhaustion of button battery
