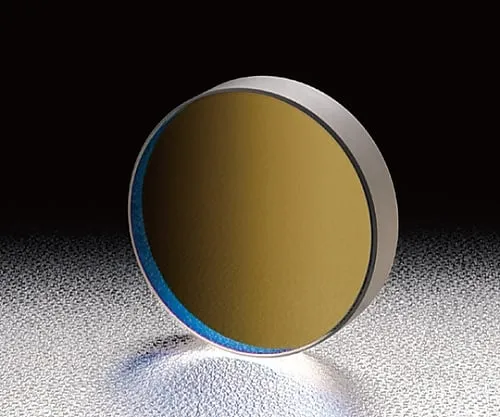

61-6871-05 Negative Dispersion Mirror For Femtosecond Laser Radius of Curvature ∞ φ12.7mm GFM-12.7C05-800
Product Description
Product Model: 61-6871-05Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6871-05
Product Brand: SIGMAKOKI CO., LTD.
Features
- A special mirror with negative wavelength dispersion.
- It can be ***d for dispersion compensation of femtosecond laser resonators.
- It cancels out the wavelength dispersion in the resonator by s***ing light back and forth multiple times between two negative dispersion mirrors.
- It is more compact than wavelength dispersion compensation by prism.
- Two types of shapes are available: flat board and cavity concave board.
- We also have a Surface Accuracy Guarantee Mirror (HTFM) that guarantees surface accuracy after coating.
- * Since it is ***d for 0° to 20° incidence, the dispersion may not be corrected at other incidence angles.
- * The reflectivity of the specification indicates the reflectivity of 0° incidence.
Spec
-
[
common specification]
- Material: BK7
- Coating: Dielectric multi-layered film
- Incident angle: 0° - 20°
- Substrate surface accuracy: λ/10
- Parallelism: <5″ (flat face)
- Scratch - dig: 10?5
- Effective diameter: 80% of the outer diameter
- Back: Polished surface
- [Individual specification]
- Adaptive wavelength: 700 - 900nm
- Outer diameter φD: φ12.7mm
- Thickness t: 5mm
- Curvature half diameter r: ∞
- Reflective ratio: ＞99.8％
- Laser durability *: 0.5J/cm2
- *Laser pulse width 50fs, Wavelength 800nm
- RoHS conform product
