Spec

• Quantity: 1 unit

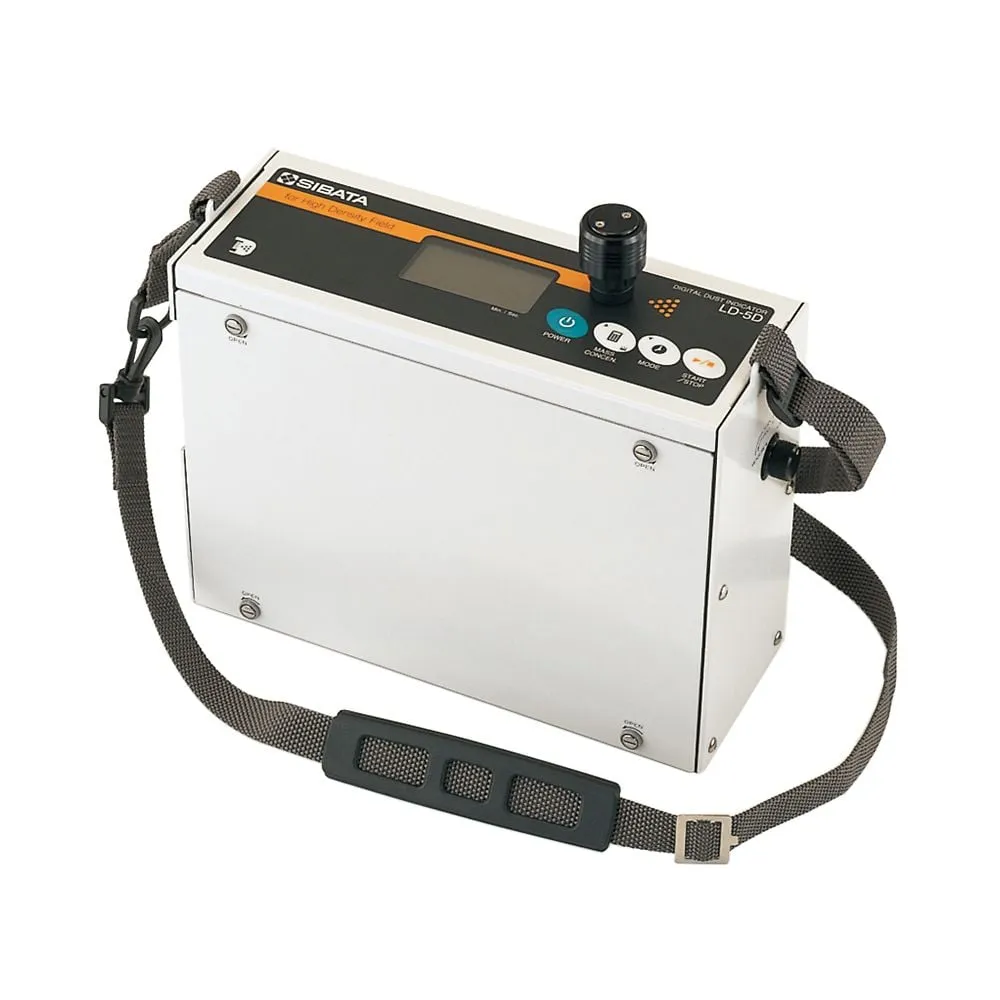

• Type: LD-5D type
• Extension: LD-5D type
• Type: LD-5D type
• Mass: 2.88kg
• Height (mm): 190
• Width (mm): 245
• Depth (mm): 90
• Measurement range: 0.01 - 100.0mg/m3
• Power supply: DC12V (AC100V: AC adapter PA-314, DC: C dry cell 8 pieces, Nickel hydrogen battery pack)
• Accuracy: +/- 10%
• Ambient temperature range: 0 - 40℃
• Display: Graphic liquid crystal
• Output: USB/RS-232C output, Non-voltage pulse output: Open collector, Voltage output: 0 - 1V
• Light source: Laser diode
• Measurement sensitivity: 1CPM=0.01mg/m3
• Measurement principle: Light scattering type
• Specification: Display contents, measurement value (0 - 99999 counts) 5 digits display
• Measurement time
• Current time
• Measurement mode
• Battery remaining amount
• K value (set values 0.1 - 9.9)
• Bar graph (displayed by pushing a switch during measurement), measurement mode
• Down timer, set measurement time by internal down timer, Measurements are performed. 6 seconds 10 seconds 30 seconds 1 minute 2 minutes 3 minutes 5 minutes 10 minutes (Power introduced initial state is "1 minute" of a down timer mode)
• Manual, measurements are started and stopped by manual.
• Log (logging), measurement day of commencing, Measurement time, Set cycle, Measurement is performed while recording measurement data in the body.
• Span check, by inserting a sensitivity calibration scattering plate and measuring, The value of scattering plate is measured, Correction values are stored.
• BG (background) Measurement is carried out in a state where fills the detection instrument with clean air, BG values are measured and stored. Deducted from the measurement values next time.
• Accessories: Shoulder belt, AC adapter (PA-314), Communication cable with software (USB), C size manganese dry cell x 8 pieces
• Traceability: Available
