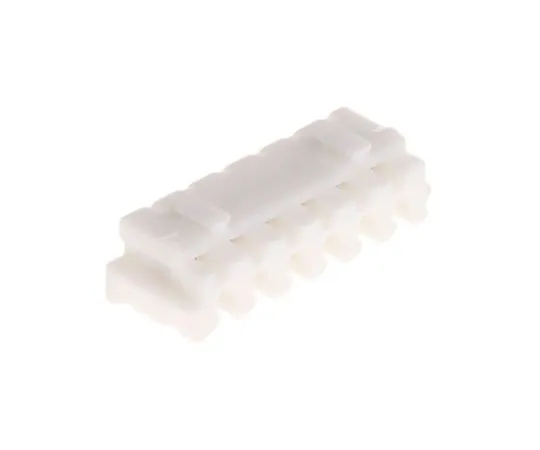

63-4946-33 TE Connectivity 6-Way IDC Connector Socket for Cable Mount, 1-Row 173977-6
model:
63-4946-33
brand:
TE Connectivity
Product Description
Product Model: 63-4946-33Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-4946-33
Product Brand: TE Connectivity
Features
- TE Connectivity AMP CT 2 mm Pre-Loaded MT (Mass Termination) Receptacle Housings. AMP CT 2 mm MT receptacle housings pre-loaded with IDC contacts for *** with 28 to 26 AWG wire. These AMP CT IDC connectors have a miniature design and feature mating alignment for an accurate connection to the mating header connectors. Features and Benefits. Miniature design Pre-loaded with IDC contacts Mating alignment feature. Applications. These AMP CT 2 mm connectors are suitable for *** in a wide range of applications and have proven wire harness making capability. Applications include business equipment, industrial machines, PCs, printers, C-TV, audio and Air Conditioning.
Spec
- Quantity:1bag(10pieces)
- Number of Contacts : 6
- Number of Rows : 1
- G***er : Female
- Pitch : 2mm
- Mounting Type : Cable Mount
- Body Orientation : Right Angle
- Termination Method : IDC
- Current Rating : 2A
- Contact Plating : Tin
- Series : AMP CT
- Voltage Rating : 125 V ac
- Contact Material : Phosphor Bronze
- CODE No.:680-1294
