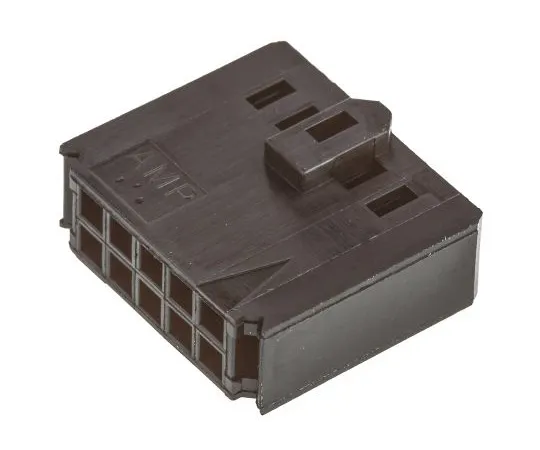

63-4945-88 TE Connectivity AMPMODU MOD IV Female Connector Housing, 2.54mm Pitch, 10 Way, 2 Row 102387-1
Electronic/Electrical Parts and Controll Equipments

63-4945-88 TE Connectivity AMPMODU MOD IV Female Connector Housing, 2.54mm Pitch, 10 Way, 2 Row 102387-1

model: 63-4945-88
brand: TE Connectivity

Product Description

Product Model: 63-4945-88Product Brand: TE Connectivity […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4945-88
Product Brand: TE Connectivity

Features

  • TE Connectivity AMPMODU Mod IV Center Polarized Receptacle Style Socket Housings. AMPMODU Mod IV center polarized receptacle style socket housings with a 2.54mm centerline. These non-polarized receptacle style socket housings are made from black, flame retardant thermoplastic and have stamped cavity identification part number and date code where size permits. There are two types of keying plugs that can be ***d with these receptacle style socket housings: stock number ; 681-2644 681-2644 which plugs into the the standard or intermediate pressure receptacle contact and stock number ; 509-2076 509-2076 which plugs directly into the housing.

Spec

  • Quantity:1bag(10pieces)
  • Number of Contacts : 10
  • Number of Rows : 2
  • Pitch : 2.54mm
  • G***er : Female
  • Mounting Type : Cable Mount
  • Series : AMPMODU MOD IV
  • For Use With : Centerline Double-Row Connector
  • Body Orientation : Straight
  • Length : 17.27mm
  • Width : 8.81mm
  • Depth : 15.24mm
  • Housing Material : Thermoplastic
  • CODE No.:680-0929
