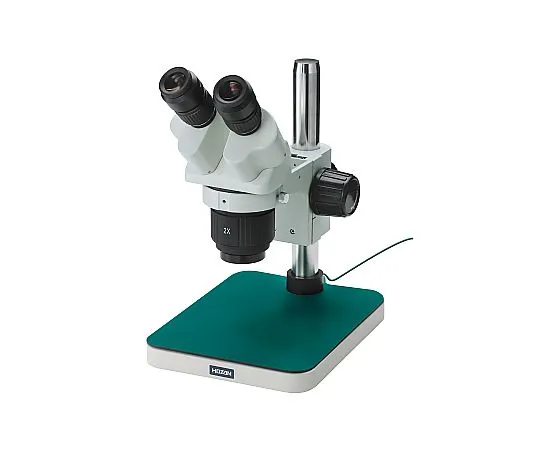

61-0485-92 Stereomicroscope L-51
Product Description
Product Model: 61-0485-92Product Brand: HOZAN TOOL INDU […]
Contact Us
Product Details
Product Model: 61-0485-92
Product Brand: HOZAN TOOL INDUSTRIAL CO., LTD.
Features
- Fixed-magnification stereomicroscope with low price
- Fixed-magnification stereomicroscope for a wide range of tasks in the field of electronic equipment.
- Cost was reduced while maintaining a long operating distance and a wide field of view.
- A conductive color mat for static electricity protection and a lens filter to protect the objective lens from solder smoke are standard.
- The standard magnification is 10/20. By using optional eyepieces and conversion lenses, you can get a 5~80 times wider field of view.
Spec
- Weight: 3.8kg
- Operation distance: 84mm (Lens filter, When installing ring)
- Total magnification: 10 x , 20 x
- Objective lens: 1 x , 2 x
- Eyepiece lens: WF10 x (L-546-10)
- Diopter adjustment: Left and right indep***ent set, ±5Dptr
- Focus adjustment: Lens barrel up or down set (movable range of 50mm)
- Lens barrel type: Binocular 45° inclination lens barrel
- Eye width adjustment range: 54 - 75mm, left and right interlocking set
- Base dimensions: 200 (W) x 255 (D) mm
- Height of strut: 282mm
- From center of lens to strut: 133mm
- Accessories: Clip (set metal fitting) 2 pieces eye cup (2 kinds) included
