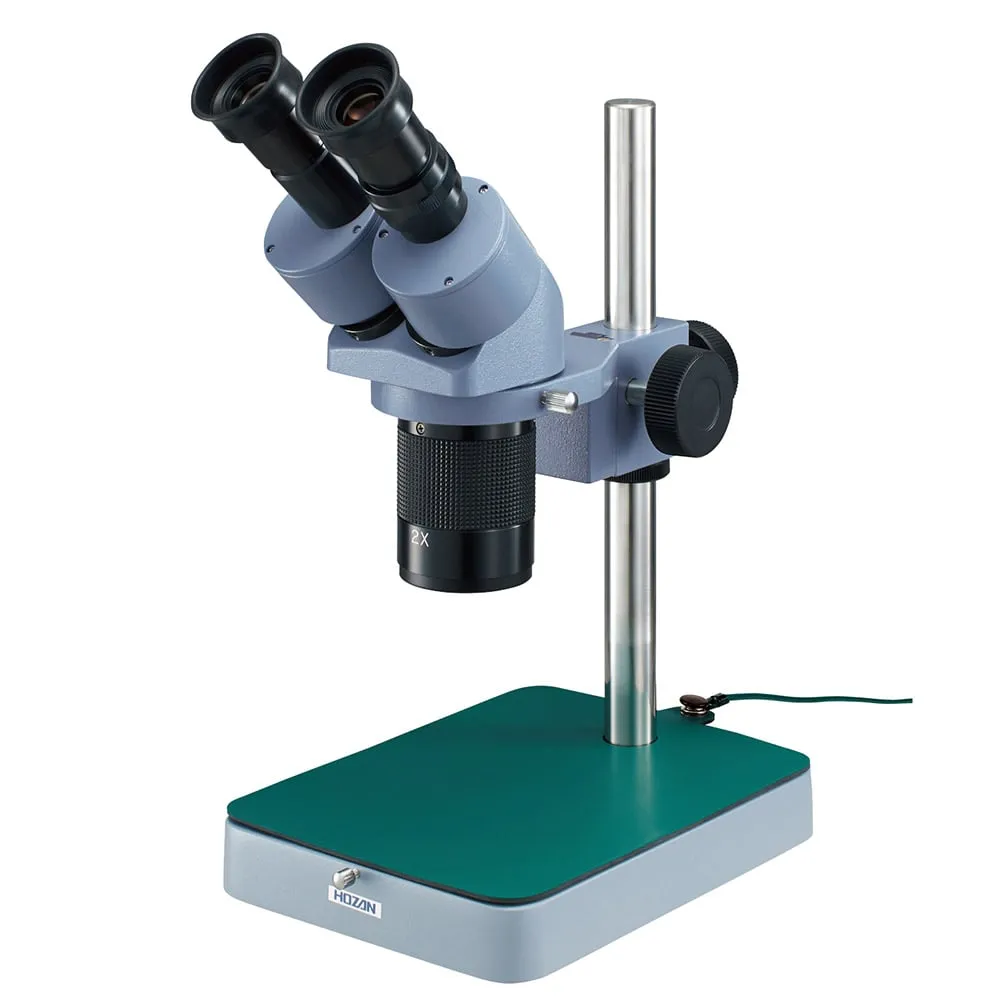

61-0485-91 Stereomicroscope L-50
Product Description
Product Model: 61-0485-91Product Brand: HOZAN TOOL INDU […]
Contact Us
Product Details
Product Model: 61-0485-91
Product Brand: HOZAN TOOL INDUSTRIAL CO., LTD.
Features
- Standard Combination Type of Stereomicroscope
- A standard model of a versatile stereomicroscope for all tasks in the field of electronics.
- Equipped with a conductive color mat to protect against static electricity and a lens filter to protect the lens from solder fumes.
- It is a basic model for system upgrade with a wide range of options, and can cover up to 5~80× with a combination of conversion lenses and eyepieces.
Spec
- Weight: 2.4kg
- Operation distance: 80mm
- Total magnification: 10 x , 20 x
- Objective lens: 1 x , 2x switching set
- Eyepiece lens: WF10 x (L-511)
- Diopter adjustment: One eye adjustment set, ±5Dptr
- Focus adjustment: Lens barrel up or down set
- Lens barrel type: Binocular 45° inclination lens barrel
- Eye width adjustment range: 55 - 74mm, Left and right indep***ent set
- Base dimensions: 145 (W) x 185 (D) mm
- Height of strut: 245mm
- From center of lens to strut: 90mm
- *Provide lighting device if necessary.
