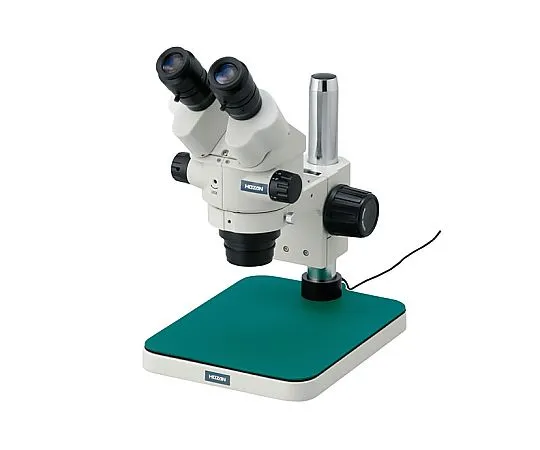

61-0485-90 Stereomicroscope L-46
Product Description
Product Model: 61-0485-90Product Brand: HOZAN TOOL INDU […]
Contact Us
Product Details
Product Model: 61-0485-90
Product Brand: HOZAN TOOL INDUSTRIAL CO., LTD.
Features
- Zoom type stereomicroscope with a zoom ratio of 6.4 and a maximum magnification of 45×
- It is a zoom type stereomicroscope for precise examination that achieves not only the brightness and sharpness of the image but also the image with a deep focal depth.
- Ensures an operating distance of 84 mm, which is easy to work with while inspecting.
- It has a wide depth of 133 mm from the strut to the center of the lens, making it easy to perform autopsy work.
- The standard magnification is 7~45×. Optional eyepieces and conversion lenses provide a wide range of magnifications and fields of view. (Magnification: 3.5~180×)
Spec
- Weight: 4.2kg
- Operation distance: 84mm (Lens filter, When installing ring)
- Total magnification: 7 - 45 x
- Objective lens: 0.7 - 4.5x (zoom ratio 6.4)
- Eyepiece lens: WF10x, field number 20 (L-546-10)
- Diopter adjustment: Left and right indep***ent set, ±5Dptr
- Focus adjustment: Lens barrel up or down set (movable range of 50mm)
- Lens barrel type: Binocular 45° inclination lens barrel
- Eye width adjustment range: 54 - 75mm, left and right interlocking set
- Base dimensions: 200 (W) x 255 (D) mm
- Height of strut: 282mm
- From center of lens to strut: 133mm
- Clip (set metal fitting) 2 pieces included
