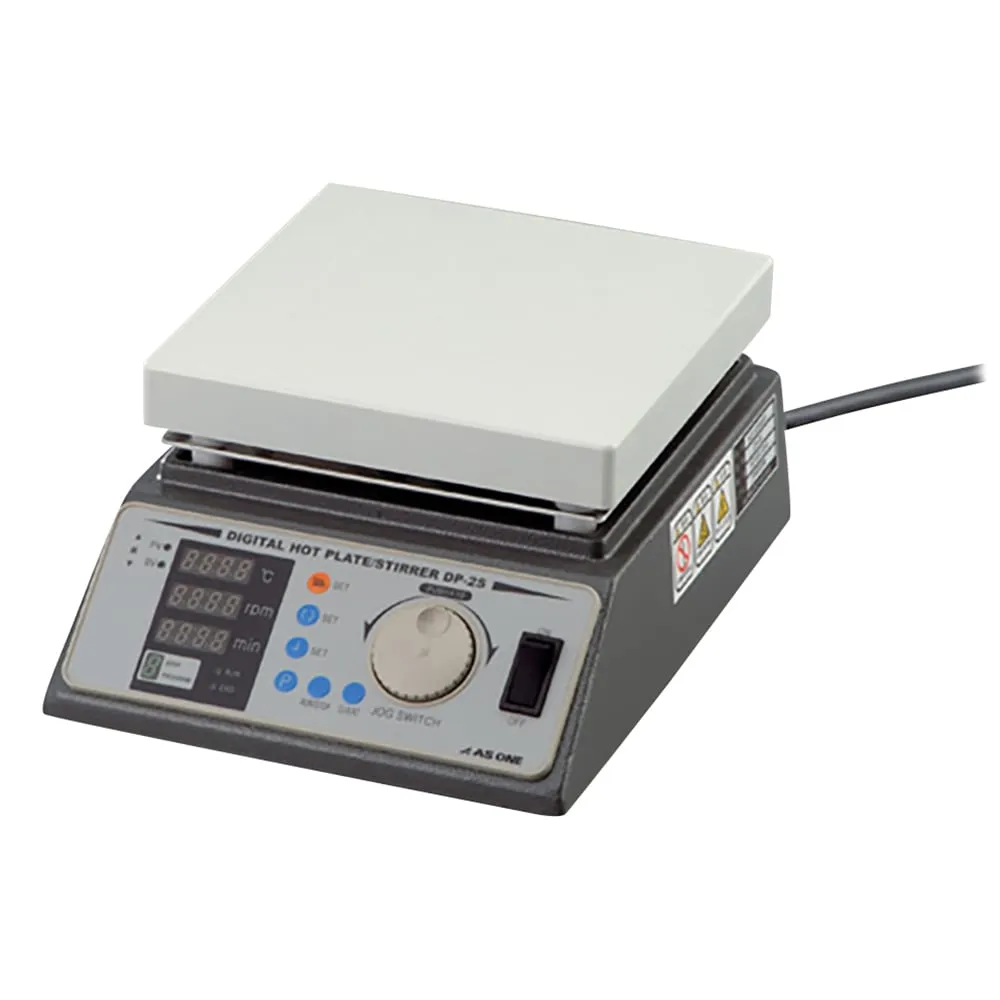

1-5478-01 Program Hot Stirrer DP-2S
Product Description
Product Model: 1-5478-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-5478-01
Product Brand: AS ONE Corporation
Features
- The speed, temperature and time are set using a smooth and quick jog dial.
- Speed, temperature, and time can be checked at a glance, and setting errors can be prevented.
- The sample temperature can be directly controlled by the external temperature sensor.
- The timer function can be set for up to 99 hours and 59 minutes (in 1 minute increments), and the buzzer indicates the ***.
- The microcomputer type PID control is ***d for temperature control, which enables high precision temperature control.
- It is equipped with the function to display the operating temperature condition (temperature rise, stable, and fall), so you can *** it without worry.
- One pattern can be programmed in 8 steps.
Spec
- Size: 200 x 260 x 105mm
- Rotation speed setting range: 100 - 1500rpm (setting resolution: 10rpm)
- Number of stirring: 1
- Temperature settings range: 0 - 350℃ (setting resolution: 1℃)
- Temperature control system: Microcomputer type PID control
- Internal sensor: K class thermocouple
- Timer function: Setting range/1 minute - 99 hours 59 minutes (1 minute unit)
- Program function: 1 pattern 8 steps/temperature, rotation speed, and time settings for each step
- Plate size: 180 x 180mm
- Plate material: Aluminum die cast (ceramic coating finish)
- Heater capacity: 800W
- Power supply: 100VAC 50/60Hz
- Weight: 4.0kg
- Model number: DP-2S
- *Stirrer bar is not included in the package.
- RoHS3 (EU)2015/863 Certificates can be issued
