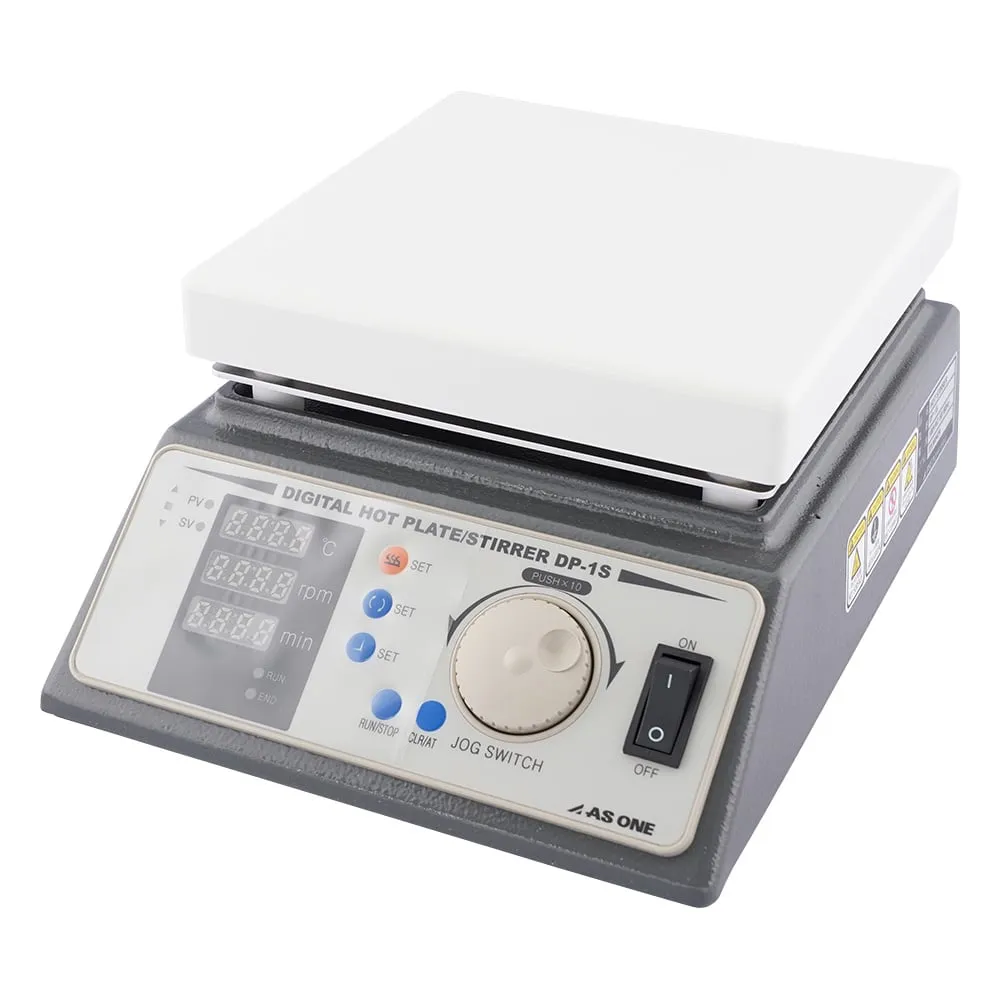

1-5477-01-22 Digital Hot Stirrer with Pre-shipment Inspection Certificate DP-1S
Product Description
Product Model: 1-5477-01-22Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 1-5477-01-22
Product Brand: AS ONE Corporation
Features
- The speed, temperature and time are set using a smooth and quick jog dial.
- Speed, temperature and time can be checked at a glance, and setting errors can be prevented.
- The sample temperature can be directly controlled by the external temperature sensor.
- The timer function can be set for up to 99 hours and 59 minutes (in 1 minute increments), and the buzzer indicates the ***.
- The microcomputer type PID control is ***d for temperature control, which enables high precision temperature control.
- It is equipped with the function to display the operating temperature condition (temperature rise, stable, and fall), so you can *** it without worry.
Spec
- Size: 200 x 260 x 105 mm
- Speed setting range: 100 ~ 1500 rpm (setting resolution: 10 rpm)
- Number of stirrers: 1
- Temperature setting range: 0 ~ 350 degrees Celsius (Setting resolution: 1 degrees Celsius)
- Temperature control system: microcomputer PID control
- Internal sensor: K thermocouple
- Timer function: Setting range/1 minute to 99 hours 59 minutes (1 minute increments)
- Plate size: 180 x 180 mm
- Plate Material: Aluminum Die Cast (Ceramic Coating Finish)
- Heater capacity: 800 W
- Power supply: 100 VAC 50/60 Hz
- Weight: 4.0 kg
- *A rotor is not included.
- *The recomm***ed rotor is Φ8 x 25 mm and Φ8 x 30 mm.
- *The speed setting range is the control value.
- At high speeds, the pitch may be de-tuned dep***ing on the container and volume ***d.
- Inspection contents App***ix: Inspection inspection documents
- Measured speed/measured temperature/insulation resistance value/apPearance
- App***ix: Inspection Certificate documents
- *Products with Inspection Certificate are Azwan's original service that includes inspection of control and electric engine personnel and issuance of inspection documents at the time of shipment.
