Features

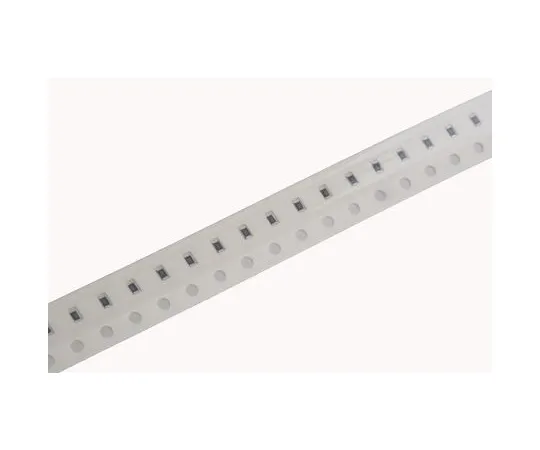

• 0603 CRCW Series Surface Mount Fixed Resistor - 1% (Paper T/R) (10kΩ to 10MΩ). From Vishay, the CRCW series consists of surface mount thick film resistors. These SMD resistors are constructed from a high quality ceramic with a metal glaze. With pure tin plated solder contacts, you can *** soldering processes that either contain lead or are lead-free. Features and benefits:. 0603 package size. Available with resistance values ranging from 0 Ω to 10 MΩ. Protective overglaze. Excellent stability (ΔR/R ≤ 1 % for 1000h at +70 °C). Wide operating temperature range of -55°C to +155°C. ±1% tolerance. Applications:. These SMD resistors are suited to a wide range of applications include telecommunication equipment, cameras and computers. With an AEC-Q200 qualification, these SMD resistors are also suitable for automotive applications.
