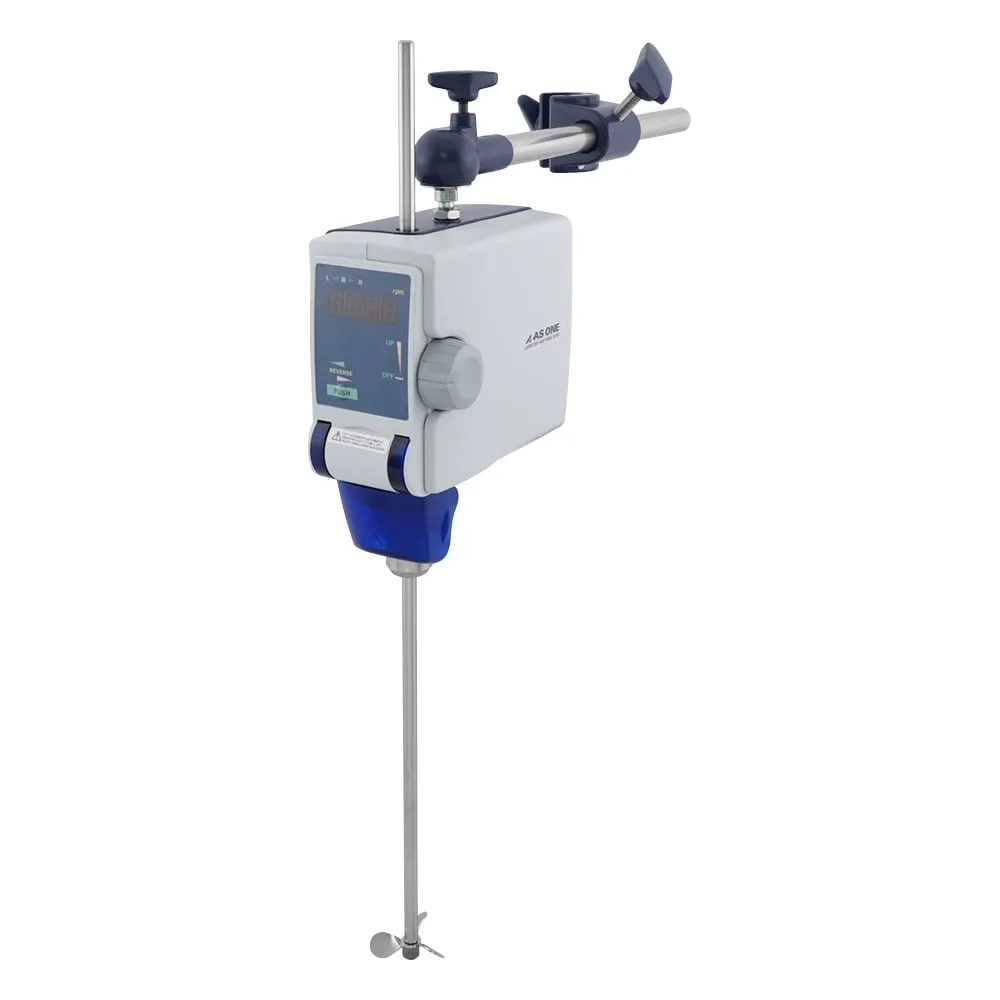

1-5472-01-28　Tornado (Agitator) Standard 50 ~ 3000 rpm with Pre-shipment Validation　SM-101

model: 1-5472-01-28

brand: AS ONE Corporation

category: laboratoryinstruments

Product Description

Product Model: 1-5472-01-28Product Brand: AS ONE Corpor […]

18866622123

WeChat ID: 18866622123

Product Model: 1-5472-01-28

Product Brand: AS ONE Corporation

Validated products are Azuwan original services that conduct FAT (Factory Acceptance Test) at Azuwan before shipping.
Validate (FAT) before shipping.
After receiving the order, a FAT instruction form (plan) is sent to the ***r, and after the signature is returned, the FAT is performed.
App***ix: FAT report/Calibration Certificate of ***d measuring instrument copied
*I am attaching Azwan's original FAT instruction manual (see the sample at the bottom left of the Screen).
Temperature point: number of revolutions
Speed: 50 ~ 3000 rpm
Maximum torque: 0.10 N/m (1.0 kgf/cm)
Standard Type
rotation control: speed feedback control
Motor: DC Brushless Motor 30 W (Class B Insulation/130 C)
Safety functions: Thermal protector, current limiting circuit, chuck cover interlocking fail-safe function
Accessory function: forward/reverse switching function
Chuck: Collet type hand-tightened chuck for phi8 mm
Size: 98 x 155 x 164 mm
Power supply: 100 VAC 50/60 Hz 88 VA
Weight: 2.5 kg
Accessories: Arm holder (1 -5472 -14), Arm bar (1 -5472 -15), Stirring bar (Φ8 x 495 mm) (1 -5472 -13), Stirring blade propeller type (phi 50 mm) (1 -5472 -11), Stirring blade fixing nut (1 -5472 -12)
*Stand (5 -5379 - 01) not included.
*If you would like to request a local IQOQ, please contact us separately. We need your installation address for the estimate.
