63-4942-67 30Ω 0402 Thick Film SMD Resistor ±1% 0.063W - CRCW040230R0FKED CRCW040230R0FKED
Product Description
Product Model: 63-4942-67Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-4942-67
Product Brand: Vishay
Features
- 0402 CRCW Series Surface Mount Fixed Resistors - 1% (Paper T/R) (10Ω to 9.76kΩ). From Vishay, the CRCW series consists of surface mount thick film resistors. These SMD resistors are constructed from a high quality ceramic with a metal glaze. With pure tin plated solder contacts, you can *** soldering processes that either contain lead or are lead-free. Features and benefits:. 0402 package size. Available with resistance values ranging from 0 Ω to 10 MΩ. Protective overglaze. Excellent stability (ΔR/R ≤ 1 % for 1000h at +70 °C). Wide operating temperature range of -55°C to +155°C. ±1% tolerance. Applications:. These SMD resistors are suited to a wide range of applications include telecommunication equipment, cameras and computers. With an AEC-Q200 qualification, these SMD resistors are also suitable for automotive applications.
Spec
- Quantity:1bag(50pieces)
- Resistance : 30Ω
- Technology : Thick Film
- Package/Case : 0402 (1005M)
- Tolerance : ±1%
- Power Rating : 0.063W
- Temperature Coefficient : ±100ppm/°C
- Series : CRCW
- Minimum Operating Temperature : -55°C
- Maximum Operating Temperature : +155°C
- CODE No.:678-9153
Related product recommendations
You may also be interested in the following products
63-8055-78 RS PRO Steel 18 Teeth Spur Gear, 14.4mm Pitch Diam. , 12 Hub Diam. , 5mm Bore Diam. 878-7862
model: 63-8055-78
brand: RS PRO
63-4969-53 Bourns 1 Gang Trimmer Cermet Potentiometer, 50kΩ, ±10%, 0.5W, Linear 3386V-1-503LF 3386V-1-503LF
model: 63-4969-53
brand: Bourns

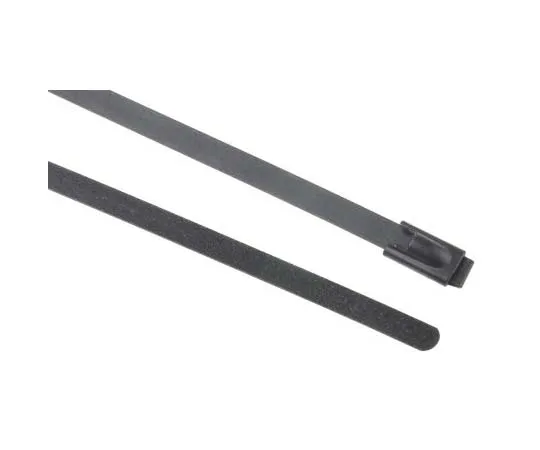

63-7790-26 RS Black Polyester Coated Stainless Steel Roller Ball Cable Tie, 680mm x 4.6 mm 743-6190
