Electronic/Electrical Parts and Controll Equipments

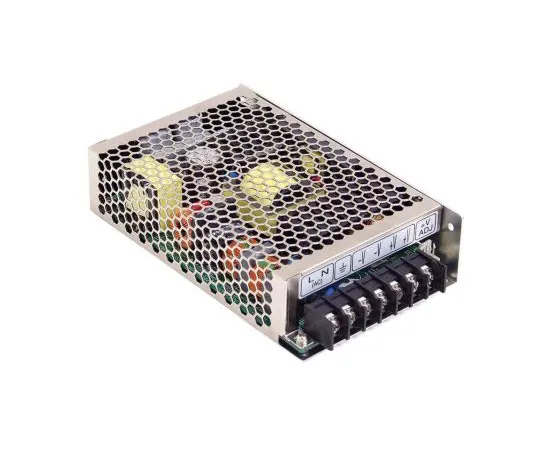

63-4941-95 Mean Well 150W 1 Output Embedded Switch Mode Power Supply SMPS, 10A, 15V dc Enclosed HRP-150-15
Product Description
Product Model: 63-4941-95Product Brand: Mean Well Featu […]
Contact Us
Product Details
Product Model: 63-4941-95
Product Brand: Mean Well
Features
- UL60950-1, TUV EN60950-1. UL/cUL recognised, TUV, CB. Power derates above 40°C. MTBF to MIL-HDBK-217F. 5. HRP-150 Series Single Output Power Supply With PFC Function. High efficiency, long life and high reliability No load power consumption ;0.5W Built-in active PFC function Built-in constant current limiting circuit Built-in remote sense function Short circuit, over load, over voltage and over temperature protection Withstands 300Vac surge input for 5 seconds 1U low profile 38mm Power factor correction to EN61000-3-2,-3 EMC compliance to EN55022 class B
Spec
- Quantity：1piece
- Output Voltage : 15V dc
- Output Current : 10A
- Power Rating : 150W
- Number of Outputs : 1
- Input Voltage : 120 → 370 V dc, 85 → 264 V ac
- Mounting Type : Chassis Mount
- Package Type : Enclosed
- Length : 159mm
- Width : 97mm
- Depth : 38mm
- Weight : 610g
- Efficiency : 88%
- Maximum Temperature : +70°C
- Minimum Temperature : -40°C
- CODE No.:678-3795
