Electronic/Electrical Parts and Controll Equipments

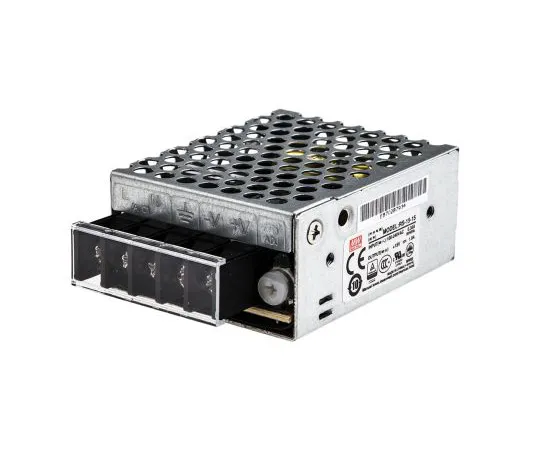

63-4941-88 Mean Well 15W 1 Output Embedded Switch Mode Power Supply SMPS, 1A, 15V dc Enclosed RS-15-15
Product Description
Product Model: 63-4941-88Product Brand: Mean Well Featu […]
Contact Us
Product Details
Product Model: 63-4941-88
Product Brand: Mean Well
Features
- EN 60950-1, UL 60950-1. TUV, CB, UL recognised component for Canada ; US. De-rate above 50°C operating temperature. MTBF to MIL-HDBK-217F (25°C). 3. RS-15 Series Single Output Power Supply. High efficiency, long life and high reliability Miniature size, high power density High operating temperature up to 70°C 105°C long life electrolytic capacitors Easy installation - screw terminals Adjustable output voltage Power on LED indicator Harmonic current compliance to EN 61000-3-2 EMC meets EN 55022 Class B 100% full load burn-in test Short circuit, over-load, over-voltage and over-temperature protection
Spec
- Quantity：1piece
- Output Voltage : 15V dc
- Output Current : 1A
- Power Rating : 15W
- Number of Outputs : 1
- Input Voltage : 120 → 370 V dc, 85 → 264 V ac
- Mounting Type : Chassis Mount
- Package Type : Enclosed
- Length : 62.5mm
- Width : 51mm
- Depth : 28mm
- Weight : 130g
- Efficiency : 81%
- Maximum Temperature : +70°C
- Minimum Temperature : -20°C
- CODE No.:678-3748
