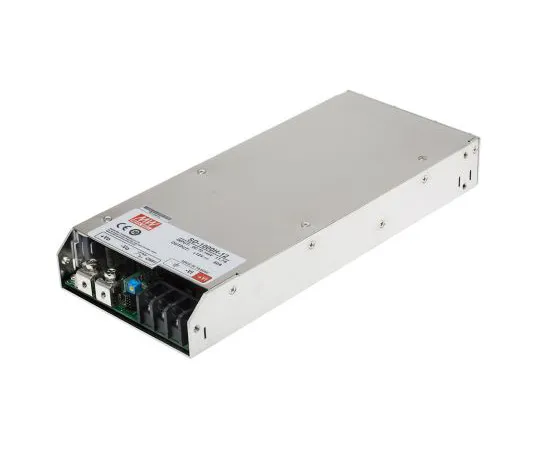

63-4941-82 Mean Well 1000W Isolated DC-DC Converter Rack Mount, Voltage in 72 → 144 V dc, Voltage out 12V dc SD-1000H-12
Product Description
Product Model: 63-4941-82Product Brand: Mean Well Featu […]
Contact Us
Product Details
Product Model: 63-4941-82
Product Brand: Mean Well
Features
- IEC 60950-1. CB, TUV. De-rating above 50°C. MTBF to MIL-HDBK-217F (25°C). 3. SD-1000 Series Single Output Enclosed Regulated Isolated DC-DC Converter. High reliability 1U low profile - 41mm High power density - 10.7W/inch³ Ultra-wide 4:1 input voltage range Regulated outputs 12V, 0.25A auxiliary output Easy installation - screw terminals Adjustable output voltage EMC meets EN 55022 Class B Forced air cooling by built-in dual fans with speed control Remote ON/OFF control Remote sense LED power-on indicator Short circuit, over-load, over-voltage and over-temperature protection 2kV input / output isolation
Spec
- Quantity：1piece
- Output Voltage : 12V dc
- Output Voltage Adjustment Range : 11 → 15V
- Input Voltage Range : 72 → 144 V dc
- Input Voltage Nominal : 96 V dc
- Isolation Voltage : 2kV ac
- Power Rating : 1000W
- Output Current : 60A
- Mounting Type : Rack Mount
- Number of Outputs : 1
- Efficiency : 85%
- Load Regulation : ±0.5%
- Maximum Temperature : +60°C
- Depth : 41mm
- CODE No.:678-3675
