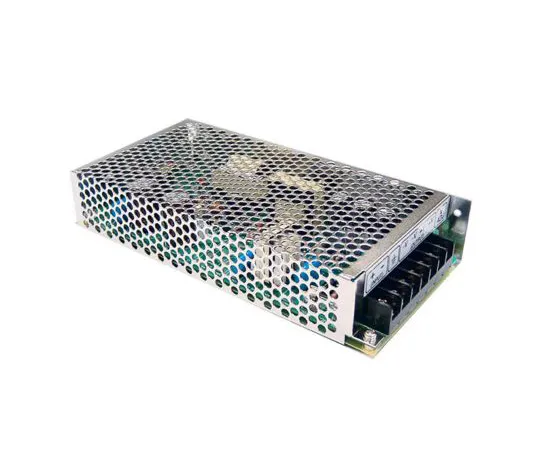

63-4941-76　Mean Well 100W Isolated DC-DC Converter Chassis Mount, Voltage in 72 → 144 V dc, Voltage out 12V dc　SD-100D-12
Electronic/Electrical Parts and Controll Equipments

63-4941-76　Mean Well 100W Isolated DC-DC Converter Chassis Mount, Voltage in 72 → 144 V dc, Voltage out 12V dc　SD-100D-12

model: 63-4941-76
brand: Mean Well
category: Electronic/Electrical Parts and Controll Equipments

Product Description

Product Model: 63-4941-76Product Brand: Mean Well Featu […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code
Online Consultation

Product Details

Product Model: 63-4941-76
Product Brand: Mean Well

Features

  • Stock nos. ; 678-3587 678-3587 , ; 491-241 491-241 ; ; 183-679 183-679 de-rate below 0 and above 30°C. Stock nos. ; 678-3580 678-3580 , ; 491-239 491-239 , ; 678-3584 678-3584 ; ; 678-3593 678-3593 de-rate below 0 and above 40°C. Stock nos. ; 183-657 183-657 , ; ; 183-708 183-708 de-rate below 0 and above 50°C. MTBF to MIL-HDBK-217F (25°C). 2. SD-100 Series Single Output Enclosed Regulated Isolated DC-DC Converter. High reliability Wide 2:1 input voltage range Regulated outputs Easy installation - screw terminals Adjustable output voltage EMC meets EN 55022 Class B LED power-on indicator Short circuit, overload and overvoltage protection 1.5kV input / output isolation

Spec

  • Quantity：1piece
  • Output Voltage : 12V dc
  • Output Voltage Adjustment Range : 11 → 16V
  • Input Voltage Range : 72 → 144 V dc
  • Input Voltage Nominal : 96 V dc
  • Isolation Voltage : 1.5kV ac
  • Power Rating : 100W
  • Output Current : 8.5A
  • Mounting Type : Chassis Mount
  • Number of Outputs : 1
  • Efficiency : 80%
  • Load Regulation : ±0.3%
  • Maximum Temperature : +60°C
  • Depth : 38mm
  • CODE No.:678-3593
