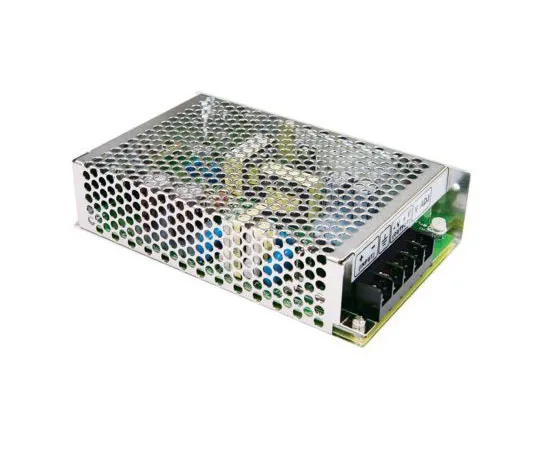

63-4941-74 Mean Well 50W Isolated DC-DC Converter Chassis Mount, Voltage in 19 → 36 V dc, Voltage out 24V dc SD-50B-24
Product Description
Product Model: 63-4941-74Product Brand: Mean Well Featu […]
Contact Us
Product Details
Product Model: 63-4941-74
Product Brand: Mean Well
Features
- De-rating below 0 and above 40°C. MTBF to MIL-HDBK-217F (25°C). 2. SD-50 Series Single Output Enclosed Regulated Isolated DC-DC Converter. High reliability Wide 2:1 input voltage range Regulated outputs Easy installation - screw terminals Adjustable output voltage EMC meets EN 55022 Class B LED power-on indicator Short circuit, overload and overvoltage protection 1.5kV input / output isolation
Spec
- Quantity：1piece
- Output Voltage : 24V dc
- Output Voltage Adjustment Range : 23 → 30V
- Input Voltage Range : 19 → 36 V dc
- Input Voltage Nominal : 24 V dc
- Isolation Voltage : 1.5kV ac
- Power Rating : 50W
- Output Current : 2.1A
- Mounting Type : Chassis Mount
- Number of Outputs : 1
- Efficiency : 80%
- Load Regulation : ±0.2%
- Maximum Temperature : +60°C
- Depth : 38mm
- CODE No.:678-3571
