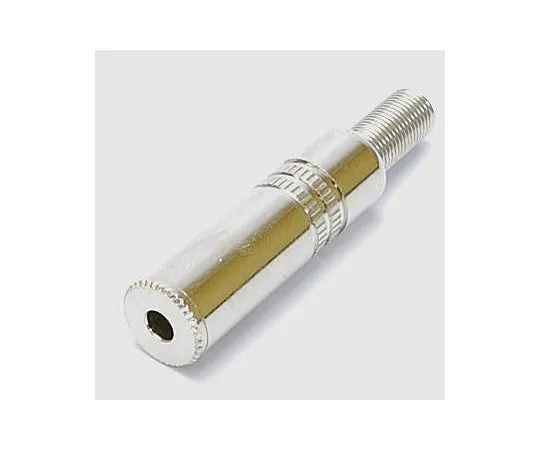

Features

• Plug/Jack: 3.5 mm Jack
• Stereo/Mono: Mono
• Number of poles :-
• Format: Straight
• Terminal treatment :-
• Material: Metal
• Notes: Cord bushing included (spring)
• Insulation and non-insulation
• Panel-mounted RCA pin jacks, φ3.5 jacks, etc. are divided into "Insulation Type" and "Non-Insulation Type." What is insulated or uninsulated? When a connector is attached to a panel, it means whether the GND terminal of the connector makes contact with the panel.
• In the case of the insulated type, the GND terminal of the connector is not connected (contacted) with the panel.
• The non-insulated type is electrically connected when the panel is metallic.
• Use an insulated connector when you do not want to create a GND (ground) loop.
• * A GND loop is a loop (circle) of wiring. In particular, a loop of a GND wire is called a "GND loop." When the magnetic flux crosses the loop, a current flows through the GND line, creating a voltage that creates noise. In such cases, breaking the loop prevents noise ca***d by the interlocking of magnetic flux.
