Electronic/Electrical Parts and Controll Equipments

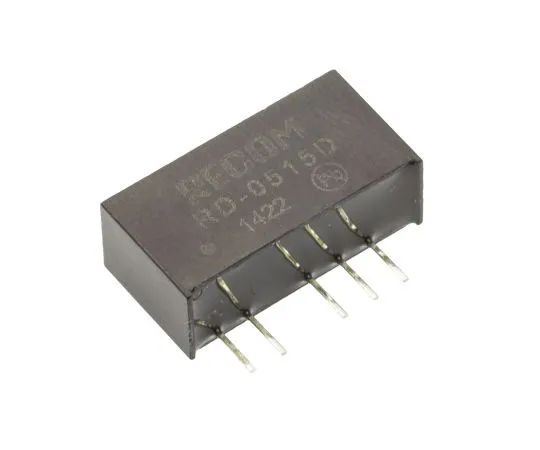

63-4938-60 Recom RD 2W Isolated DC-DC Converter Through Hole, Voltage in 4.5 → 5.5 V dc, Voltage out ±15V dc RD-0515D
Product Description
Product Model: 63-4938-60Product Brand: Recom Features […]
Contact Us
Product Details
Product Model: 63-4938-60
Product Brand: Recom
Features
- EN-60950-1. MTBF to MIL-HDBK 217F. Operating temperature is without derating. Recom 2W SIP Dual Output Unregulated Isolated DC-DC Converter - RD Series. Unregulated outputs 1kVdc isolation Power sharing on outputs Short circuit protected Efficiency up to 86% UL94V-0 package material Industry standard SIP7 package
Spec
- Quantity：1piece
- Output Voltage : ±15V dc
- Input Voltage Range : 4.5 → 5.5 V dc
- Input Voltage Nominal : 5 V dc
- Isolation Voltage : 1kV
- Power Rating : 2W
- Output Current : ±66mA
- Mounting Type : Through Hole
- Number of Outputs : 2
- Package : SIP
- Minimum Temperature : -40°C
- Maximum Temperature : +85°C
- Series : RD
- CODE No.:672-8864
