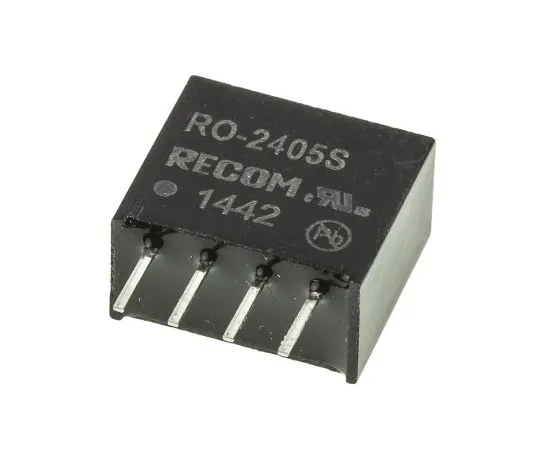

63-4938-51 Recom RO 1W Isolated DC-DC Converter Through Hole, Voltage in 21.6 → 26.4 V dc, Voltage out 5V dc RO-2405S
Product Description
Product Model: 63-4938-51Product Brand: Recom Features […]
Contact Us
Product Details
Product Model: 63-4938-51
Product Brand: Recom
Features
- EN-60950-1. MTBF to MIL-HDBK 217F Operating temperature is without derating. Recom 1W SIP Single Output Unregulated Isolated DC-DC Converter - RO Series. Unregulated outputs 1kVdc isolation Efficiency at full load up to 85% Short circuit protection Fully encapsulated UL94V-0 package SIP4 industry standard pinout
Spec
- Quantity：1piece
- Output Voltage : 5V dc
- Input Voltage Range : 21.6 → 26.4 V dc
- Input Voltage Nominal : 24 V dc
- Isolation Voltage : 1000V dc
- Power Rating : 1W
- Output Current : 200mA
- Mounting Type : Through Hole
- Number of Outputs : 1
- Package : SIP
- Minimum Temperature : -40°C
- Maximum Temperature : +85°C
- Depth : 10mm
- CODE No.:672-8795
