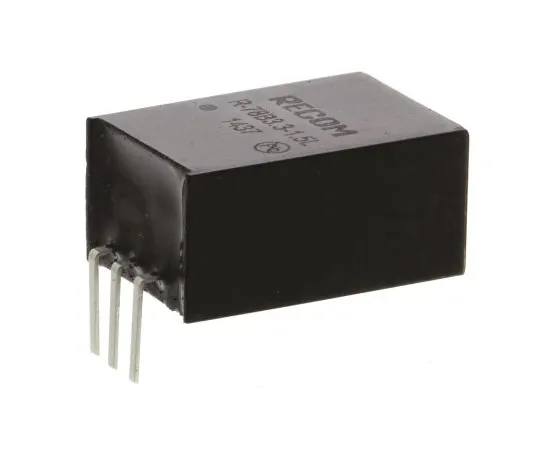

63-4938-28 Recom Switching Regulator, 4.75 → 18V dc Input, 3.3V dc Output, 1.5A R-78B3.3-1.5L
Product Description
Product Model: 63-4938-28Product Brand: Recom Features […]
Contact Us
Product Details
Product Model: 63-4938-28
Product Brand: Recom
Features
- EN-55022, EN-55024, EN-60601-1-2, EN-60950-1. De-rate above 71°C operating temperature. MTBF to MIL-HDBK 217F. R-78Bxx-1.5L Series. Non isolated Medical safety approval EN-60601-1-2 No need for heat sinks High efficiency Wide input voltage range, up to 18V Thermal shutdown and continuous short circuit protection Low ripple and noise Low profile Pin-out compatible with LM78XX Linear regulators L version with 90° pins
Spec
- Quantity：1piece
- Input Voltage : 4.75 → 18V dc
- Output Voltage : 3.3V dc
- Number of Outputs : 1
- Output Current : 1.5A
- Mounting Type : Through Hole
- Package : SIP
- Minimum Temperature : -40°C
- Maximum Temperature : +85°C
- Efficiency : 88%
- Load Regulation : ±0.6%
- Line Regulation : ±0.4%
- Depth : 8.5mm
- CODE No.:672-7158
