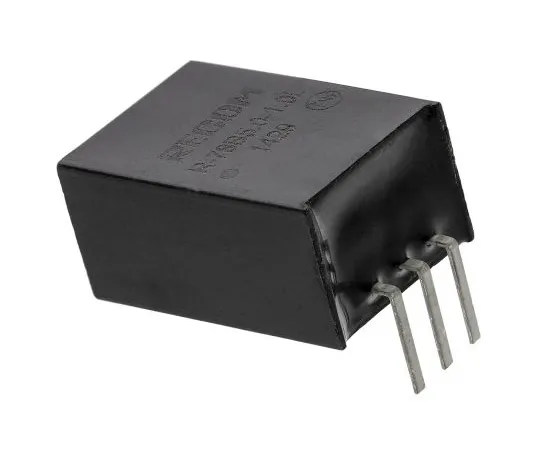

63-4938-25 Recom Switching Regulator, 32V dc Input, 5V dc Output, 1A R-78B5.0-1.0L
Product Description
Product Model: 63-4938-25Product Brand: Recom Features […]
Contact Us
Product Details
Product Model: 63-4938-25
Product Brand: Recom
Features
- EN-55022, EN-55024, EN-60601-1-2, EN-60950-1. De-rate above 71°C operating temperature. MTBF to MIL-HDBK 217F. R-78Bxx 1.0L Series. Non isolated Medical safety approval EN-60601-1-2 No need for heat sinks High efficiency Wide input voltage range, up to 34V Thermal shutdown and continuous short circuit protection Low ripple and noise Low profile Pin-out compatible with LM78XX Linear regulators L version with 90° pins
Spec
- Quantity：1piece
- Input Voltage : 32V dc
- Output Voltage : 5V dc
- Number of Outputs : 1
- Output Current : 1A
- Power Rating : 5W
- Mounting Type : Through Hole
- Package : SIP
- Minimum Temperature : -40°C
- Maximum Temperature : +85°C
- Efficiency : 93%
- MTBF : 6584000h
- Load Regulation : ±0.6%
- Line Regulation : ±0.4%
- Ripple And Noise : 20mV Pk-Pk
- Width : 17.5mm
- CODE No.:672-7149
