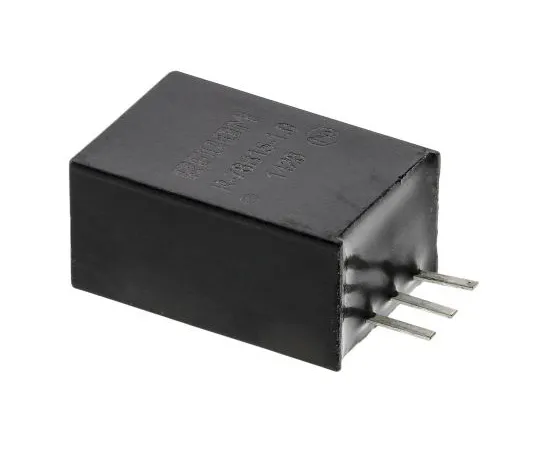

63-4938-24 Recom Switching Regulator, 32V dc Input, 15V dc Output, 1A R-78B15-1.0
Product Description
Product Model: 63-4938-24Product Brand: Recom Features […]
Contact Us
Product Details
Product Model: 63-4938-24
Product Brand: Recom
Features
- EN-55022, EN-55024, EN-60601-1-2, EN-60950-1. Derate output when operating temperature above 71°C. R78Bxx 1.0 Series. Non isolated Medical safety approval EN-60601-1-2 High efficiency switching regulator No need for heatsinks Wide input voltage range Low ripple and noise Short circuit protection and thermal shutdown Pin-out compatible with LM78xx linear regulators Industry standard SIP-3 package
Spec
- Quantity：1piece
- Input Voltage : 32V dc
- Output Voltage : 15V dc
- Number of Outputs : 1
- Output Current : 1A
- Mounting Type : Through Hole
- Package : SIP
- Minimum Temperature : -40°C
- Maximum Temperature : +85°C
- Efficiency : 97%
- MTBF : 6584000h
- Load Regulation : 0.25%
- Line Regulation : 0.1%
- Ripple And Noise : 25mV Pk-Pk
- Weight : 4g
- CODE No.:672-7136
