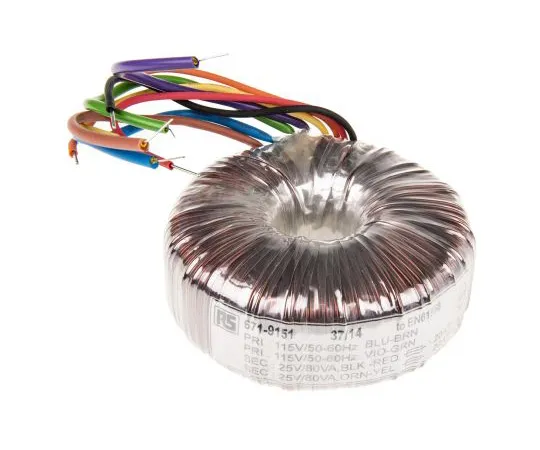

63-4937-65 2 Output Toroidal Transformer, 160VA, 2 x 25V ac 671-9151
Product Description
Product Model: 63-4937-65Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4937-65
Product Brand: RS PRO
Features
- Under no circumstances should both ***s of the fixing bolt simultaneously contact the metal chassis or framework as this would create a potentially dangerous 'shorted-turn'. Mounting hardware is not supplied, available seperately. Toroid open wound dual 115V primary. High quality open style toroidal transformers with dual 115Vac 50/60Hz primary windings and twin secondary windings which may be connected in series or parallel or ***d indep***ently. Features ; Benefits. Small size and low weight compared with traditional stacked lamination types. Extremely low level of radiated magnetic field. Very low induced noise (hum). Very low iron loss. Double insulated primary leads
Spec
- Quantity:1piece
- Primary Voltage Rating : 115V ac, 230V ac
- Secondary Voltage Rating : 2 x 25V ac
- Power Rating : 160VA
- Number of Outputs : 2
- Secondary Current : 3.2A
- Height : 46mm
- Weight : 1.7kg
- Diameter : 109mm
- Dimensions : 109 (Dia.) x 46mm
- Minimum Operating Frequency : 50Hz
- Maximum Operating Frequency : 60Hz
- Termination Type : Copper Conductor
- CODE No.:671-9151
