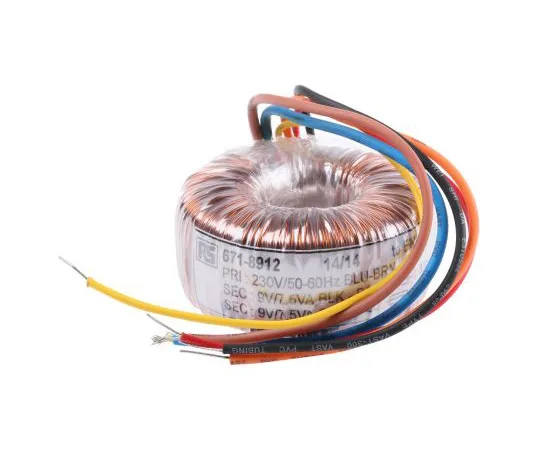

63-4937-23 2 Output Toroidal Transformer, 15VA, 2 x 9V ac 671-8912

model: 63-4937-23
brand: RS PRO

Product Description

Product Model: 63-4937-23Product Brand: RS PRO Features […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4937-23
Product Brand: RS PRO

Features

  • Under no circumstances should both ***s of the fixing bolt simultaneously contact the metal chassis or framework as this would create a potentially dangerous 'shorted-turn'. UL506, EN61558. Mounting hardware is not supplied, available seperately. Toroid open wound 230V primary. High quality open style toroidal transformers with single 230Vac 50/60Hz primary winding. Twin secondary windings may be connected in series or parallel or ***d indep***ently. Small size and low weight compared with traditional stacked lamination types Extremely low level of radiated magnetic field Very low induced noise (hum) Very low iron loss Double insulated primary leads

Spec

  • Quantity:1piece
  • Primary Voltage Rating : 230V ac
  • Secondary Voltage Rating : 2 x 9V ac
  • Power Rating : 15VA
  • Number of Outputs : 2
  • Secondary Current : 833mA
  • Height : 31mm
  • Weight : 365g
  • Diameter : 60mm
  • Dimensions : 60 (Dia.) x 31mm
  • Minimum Operating Frequency : 50Hz
  • Maximum Operating Frequency : 60Hz
  • Termination Type : Copper Conductor Termination Wire
  • Fixing Hole Diameter : 6mm
  • CODE No.:671-8912
