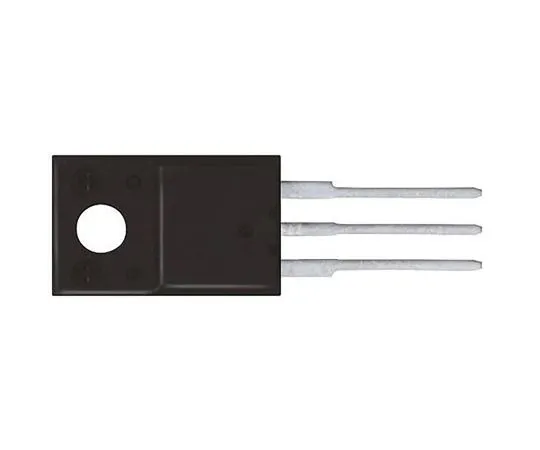

63-4937-02 FQPF19N20C N-Channel MOSFET, 19 A, 200 V QFET, 3-Pin TO-220F ON Semiconductor FQPF19N20C
model:
63-4937-02
brand:
ON Semiconductor
Product Description
Product Model: 63-4937-02Product Brand: ON Semiconducto […]
Contact Us
Product Details
Product Model: 63-4937-02
Product Brand: ON Semiconductor
Features
- QFET® N-Channel MOSFET, 11A to 30A, Fairchild Semiconductor. Fairchild Semiconductor s new QFET® planar MOSFETs *** advanced, proprietary technology to offer best-in-class operating performance for a wide range of applications, including power supplies, PFC (Power Factor Correction), DC-DC Converters, Plasma Display Panels (PDP), lighting ballasts, and motion control. They offer reduced on-state loss by lowering on-resistance (RDS(on)), and reduced switching loss by lowering gate charge (Qg) and output capacitance (Coss). By using advanced QFET® process technology, Fairchild can offer an improved figure of merit (FOM) over competing planar MOSFET devices.
Spec
- Quantity：1bag(5pieces)
- Channel Type : N
- Maximum Continuous Drain Current : 19 A
- Maximum Drain Source Voltage : 200 V
- Maximum Drain Source Resistance : 170 mΩ
- Minimum Gate Threshold Voltage : 2V
- Maximum Gate Source Voltage : -30 V, +30 V
- Package Type : TO-220F
- Mounting Type : Through Hole
- Transistor Configuration : Single
- Channel Mode : Enhancement
- Category : Power MOSFET
- Maximum Power Dissipation : 43 W
- Typical Input Capacitance @ Vds : 830 pF@ 25 V
- CODE No.:671-5247
