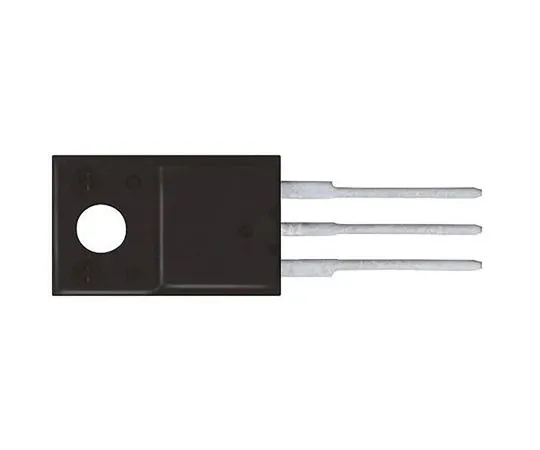

63-4936-74 FDPF18N50 N-Channel MOSFET, 18 A, 500 V UniFET, 3-Pin TO-220F ON Semiconductor FDPF18N50
model:
63-4936-74
brand:
ON Semiconductor
Product Description
Product Model: 63-4936-74Product Brand: ON Semiconducto […]
Contact Us
Product Details
Product Model: 63-4936-74
Product Brand: ON Semiconductor
Features
- UniFET™ N-Channel MOSFET, Fairchild Semiconductor. UniFET™ MOSFET is Fairchild Semiconductor's high voltage MOSFET family. It has the smallest on-state resistance among the planar MOSFETs, and also provides superior switching performance and higher avalanche energy strength. In addition, the internal gate-source ESD diode allows UniFET-II™ MOSFET to withstand over 2000V HBM surge stress. UniFET™ MOSFETs are suitable for switching power converter applications, such as power factor correction (PFC), flat panel display (FPD) TV power, ATX (Advanced Technology eXt***ed) and electronic lamp ballasts.
Spec
- Quantity：1piece
- Channel Type : N
- Maximum Continuous Drain Current : 18 A
- Maximum Drain Source Voltage : 500 V
- Maximum Drain Source Resistance : 265 mΩ
- Minimum Gate Threshold Voltage : 3V
- Maximum Gate Source Voltage : -30 V, +30 V
- Package Type : TO-220F
- Mounting Type : Through Hole
- Transistor Configuration : Single
- Channel Mode : Enhancement
- Category : Power MOSFET
- Maximum Power Dissipation : 38.5 W
- Typical Input Capacitance @ Vds : 2200 pF@ 25 V
- CODE No.:671-4884
