Electronic/Electrical Parts and Controll Equipments

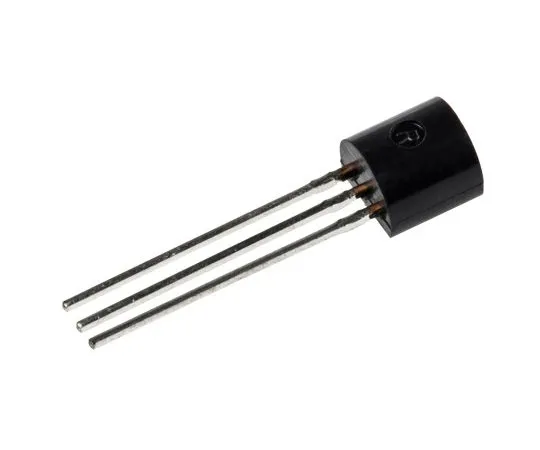

63-4936-68 2N7000 N-Channel MOSFET, 200 mA, 60 V, 3-Pin TO-92 ON Semiconductor 2N7000
model:
63-4936-68
brand:
ON Semiconductor
Product Description
Product Model: 63-4936-68Product Brand: ON Semiconducto […]
Contact Us
Product Details
Product Model: 63-4936-68
Product Brand: ON Semiconductor
Features
- Enhancement Mode N-Channel MOSFET, Fairchild Semiconductor. Enhancement Mode Field Effect Transistors (FET) are produced using Fairchild s proprietary, high cell density, DMOS technology. This high density process has been designed to minimise on-state resistance, provide rugged and reliable performance and fast switching.
Spec
- Quantity：1bag(20pieces)
- Channel Type : N
- Maximum Continuous Drain Current : 200 mA
- Maximum Drain Source Voltage : 60 V
- Maximum Drain Source Resistance : 5 Ω
- Minimum Gate Threshold Voltage : 0.8V
- Maximum Gate Source Voltage : -20 V, +20 V
- Package Type : TO-92
- Mounting Type : Through Hole
- Transistor Configuration : Single
- Channel Mode : Enhancement
- Category : Small Signal
- Maximum Power Dissipation : 400 mW
- Dimensions : 5.2 x 4.19 x 5.33mm
- CODE No.:671-4733
