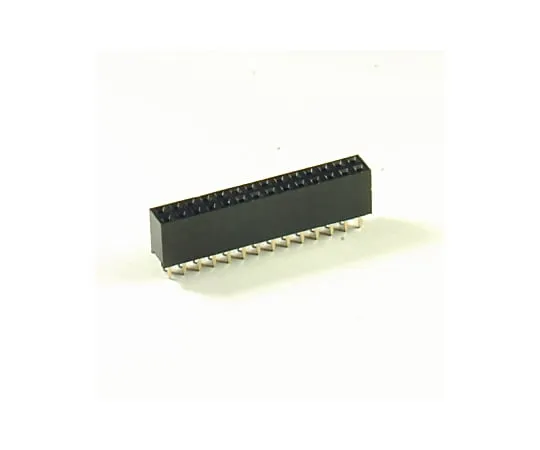

63-3101-91 Pin Socket for 28 Pin Board (14 Pin x 2 rows) 21602X14GSE
Electronic/Electrical Parts and Controll Equipments

63-3101-91 Pin Socket for 28 Pin Board (14 Pin x 2 rows) 21602X14GSE

model: 63-3101-91
brand: Linkman

Product Description

Product Model: 63-3101-91Product Brand: Linkman Feature […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-3101-91
Product Brand: Linkman

Features

  • 2.54 mm (0.1inch) pitch pin socket 2 rows x14 pins =28 pins. It is not compatible with standard 0.64 mm square square pin headers and with round pin sockets and IC sockets even at the same pitch. It is the most common connector for connecting boards directly to each other without using cables, and is ***d for various boards such as Arduino and Raspberry Pi. The number of pins in the photo may be different from the product, so please check the number of rows and the number of pins. There is also a low height type. This product is a standard type socket with no pin protrusion more than the cost of solder, but there is also a long type of pin ***d for multi-layer expansion boards such as Arduino shields. (There are further differences in the length of the long pins.). Please be careful. ) *Solder all pins before ***. If only a few pins are soldered and connected to the pin header, the socket housing may stick to the pin header side and disassemble the socket when it is removed.

Spec

  • Connector shape: pin socket
  • Number of pins: 2 rows of 28 pins (2 x 14 pins)
  • Socket Height: 8.42 mm
  • Pitch: 2.54 mm
  • Rated voltage: 500 VDC
  • Current rating: 1.0 A
  • Terminal processing: -
  • Operating temperature range: -55 degrees C to + 105 degrees C
  • Number of pieces: 1
