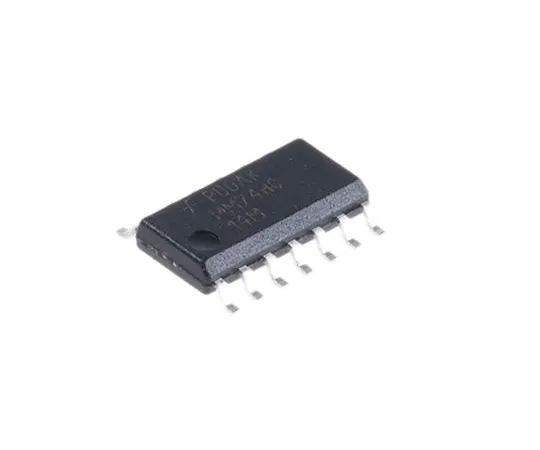

63-4935-60 ON Semiconductor MM74HC14MX, Hex Schmitt Trigger CMOS Inverter, 14-Pin SOIC MM74HC14MX
model:
63-4935-60
brand:
ON Semiconductor
Product Description
Product Model: 63-4935-60Product Brand: ON Semiconducto […]
Contact Us
Product Details
Product Model: 63-4935-60
Product Brand: ON Semiconductor
Features
- 74HC Family, Fairchild Semiconductor. High-Speed CMOS Logic Operating Voltage: 2 to 6 V Compatibility: Input CMOS, Output CMOS
Spec
- Quantity：1bag(10pieces)
- Logic Function : Inverter
- Input Type : Schmitt Trigger
- Number of Elements per Chip : 6
- Schmitt Trigger Input : Yes
- Maximum Propagation Delay Time @ Maximum CL : 125 ns @ 2 V, 21 ns @ 6 V, 25 ns @ 4.5 V
- Maximum High Level Output Current : -5.2mA
- Maximum Low Level Output Current : 5.2mA
- Mounting Type : Surface Mount
- Package Type : SOIC
- Pin Count : 14
- Logic Family : HC
- Dimensions : 8.75 x 4 x 1.5mm
- Maximum Operating Supply Voltage : 6 V
- CODE No.:670-9747
